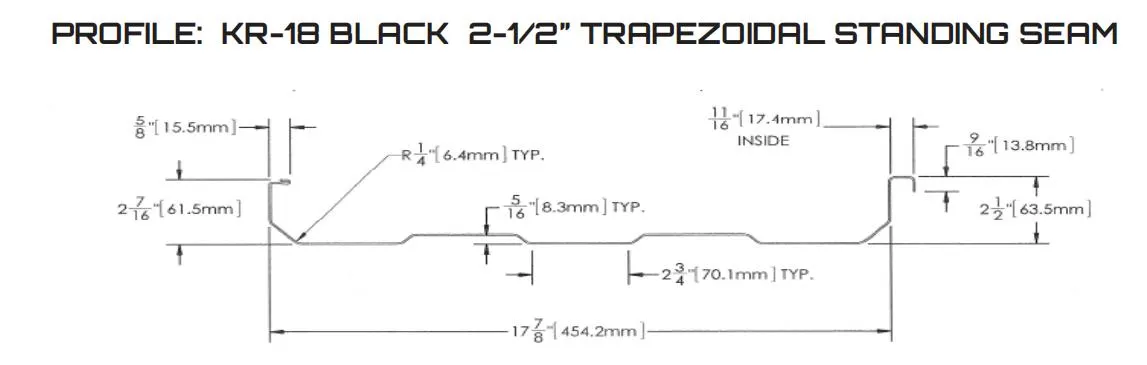

Drawings

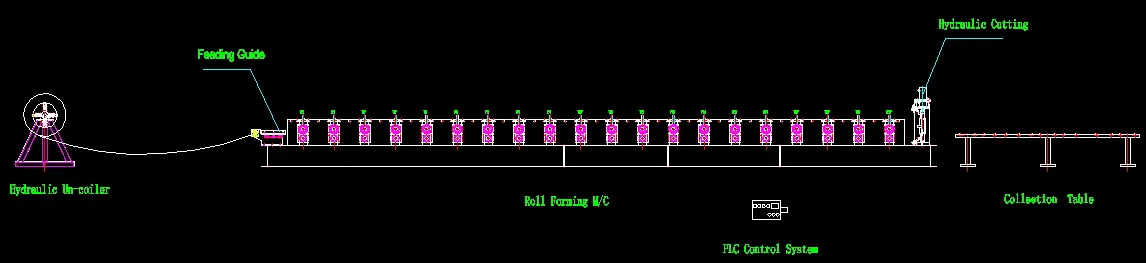

Working Process
Component
| Manuel de-coiler | x1 set |
| Main roll forming machine | x1 set |
| Hydraulic cutting system | x1 set |
| Hydraulic station | x1 set |
| PLC Control system | x1 set |
| Collection table | x1 set |
Technical parameters
The equipment is light and agile,which is suitable for jobs with very long roof runs,complex shapes or both, Yowin Rollforming on-site reduces the risks in transport and handling of very long panels, eliminates step and expansion joints and allows precise matching of procuction with installation schedules.
|
Decoiler |
1: Max width of raw material :800mm 2: Capacity: 5000kgs 3: Inner diameter of coil: 450-600mm |
|

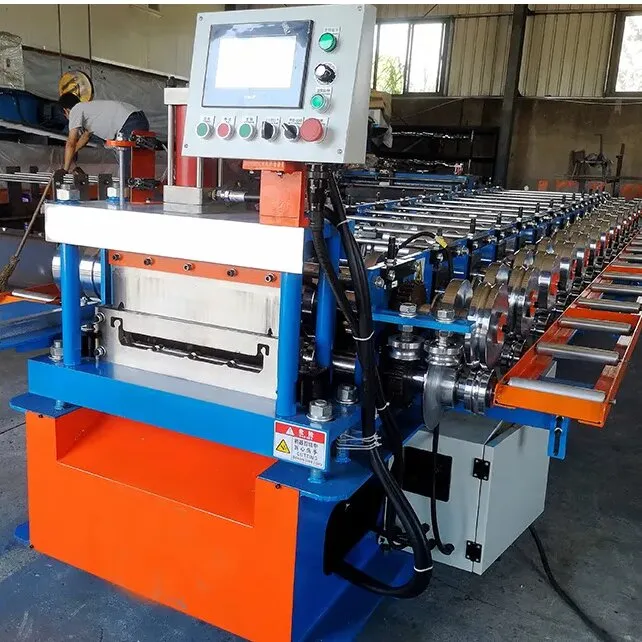

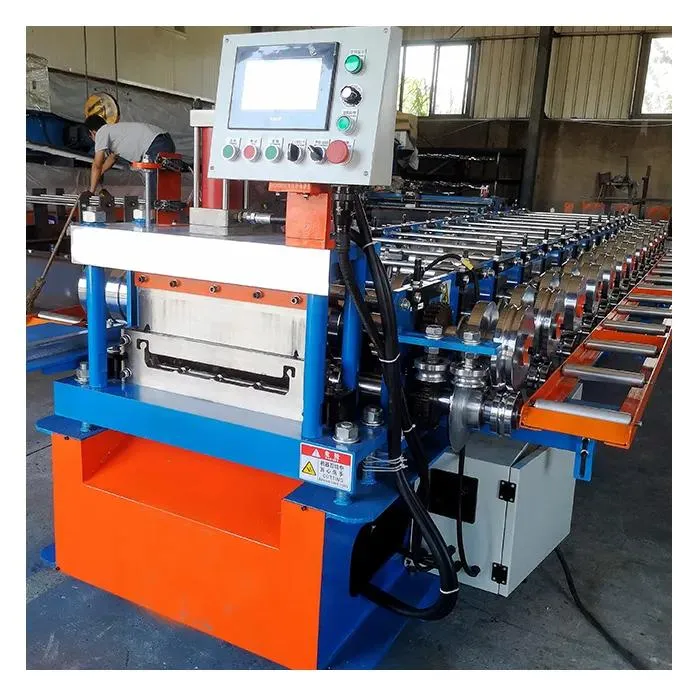

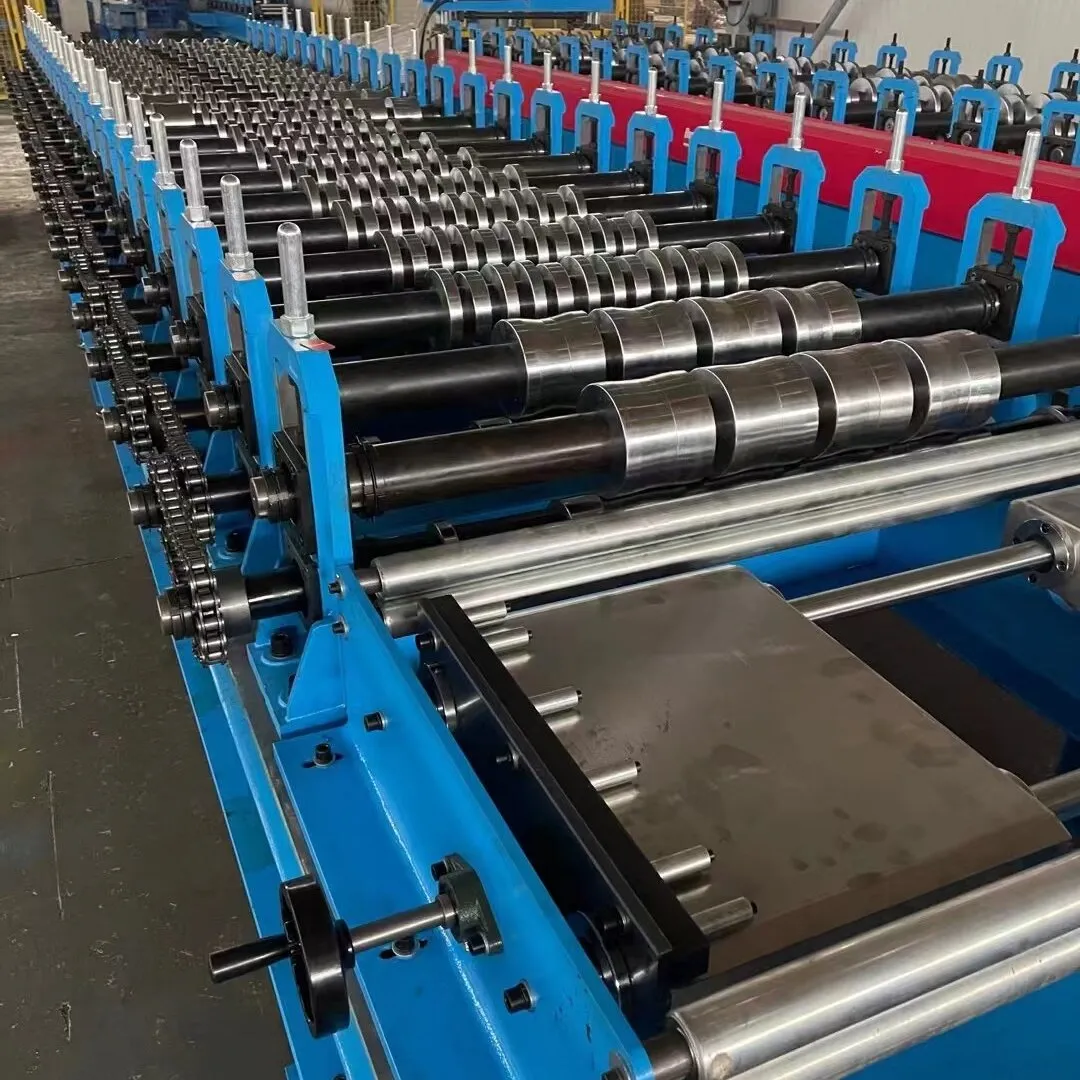

Roll forming machine |
Material thickness range:0.4-1mm (Max G550） 2. Main motor power: 5.5 kw 3. Hydraulic station: 4 kw 4. Speed: 15m/min 5. Quantity of rollers:14 rollers 6. Material of rollers: 45# with chromed 7. Shaft Material and diameter: ￠70 mm, material is 45# forge steel 8. The body of machine: 350H 9. Tolerance: 10m+-1.5mm 10. Way Of Drive: Chain 11. Control system: PLC 12. Material of cutter blade: Cr12 mould steel with quenched treatment 58-62℃ 13. Voltage: 380V/3Phase/50HZ 14.Size of roll forming machine: approx 8.0m*1.0m*1.2m |
|

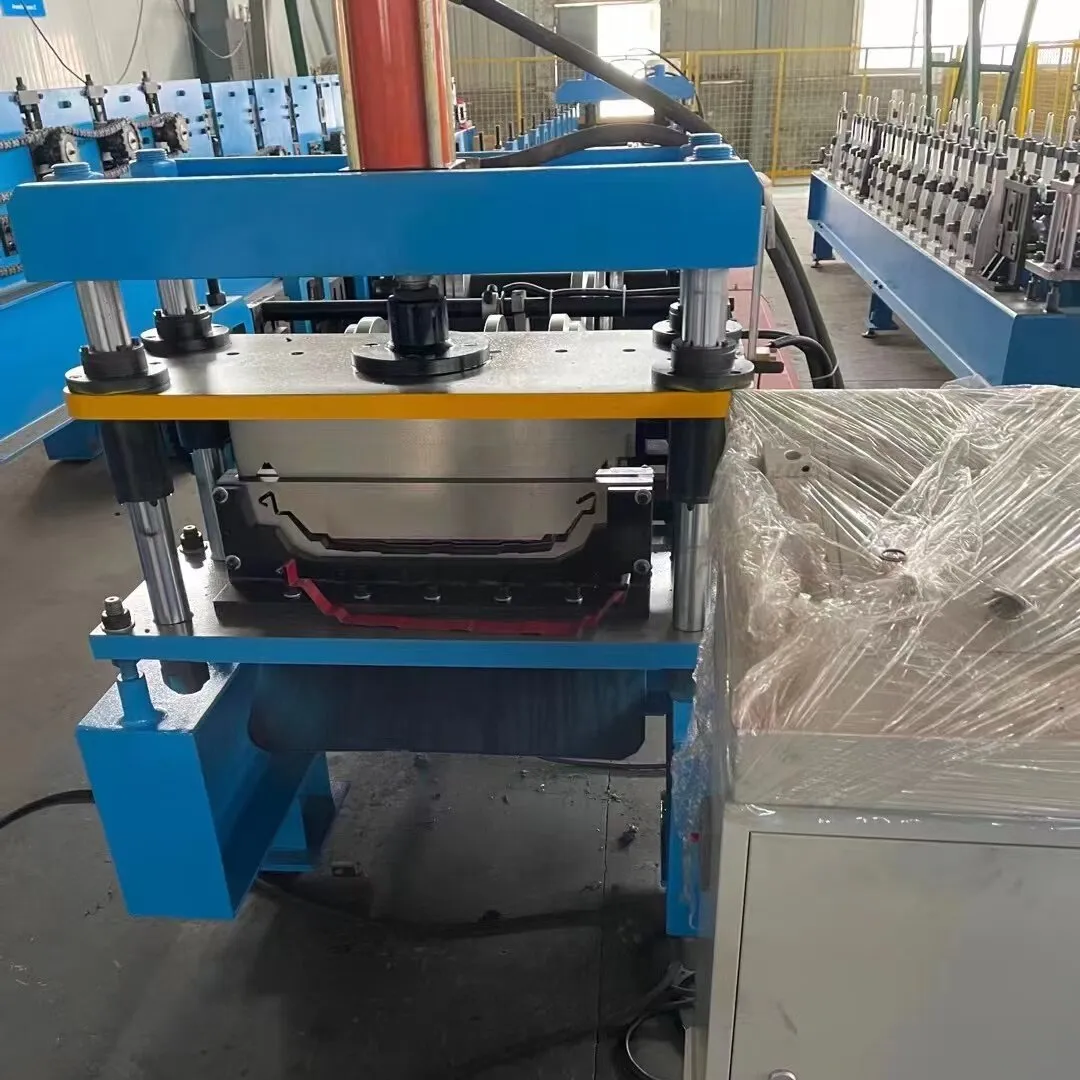

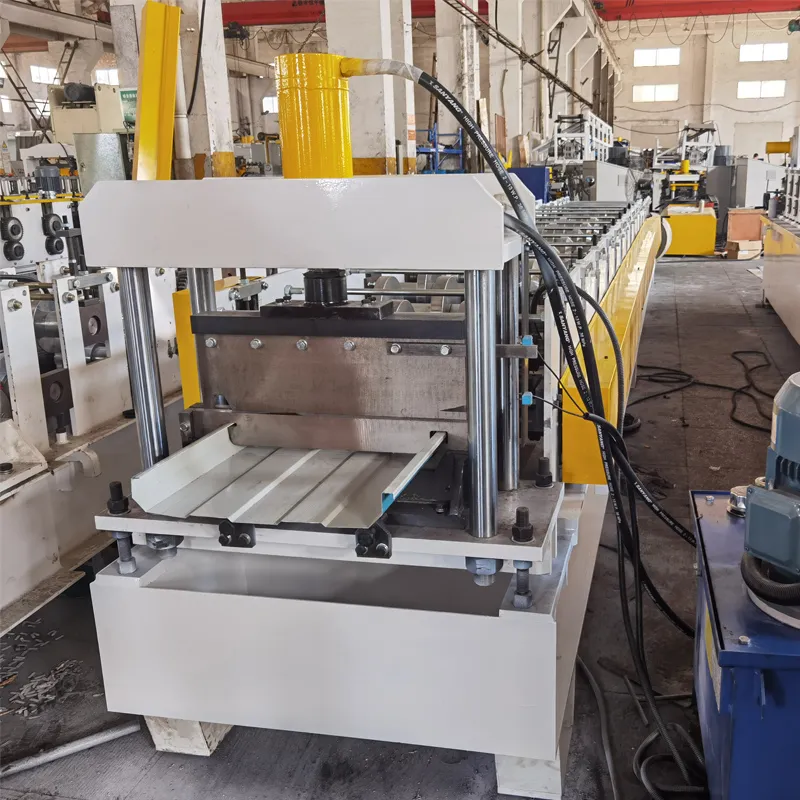

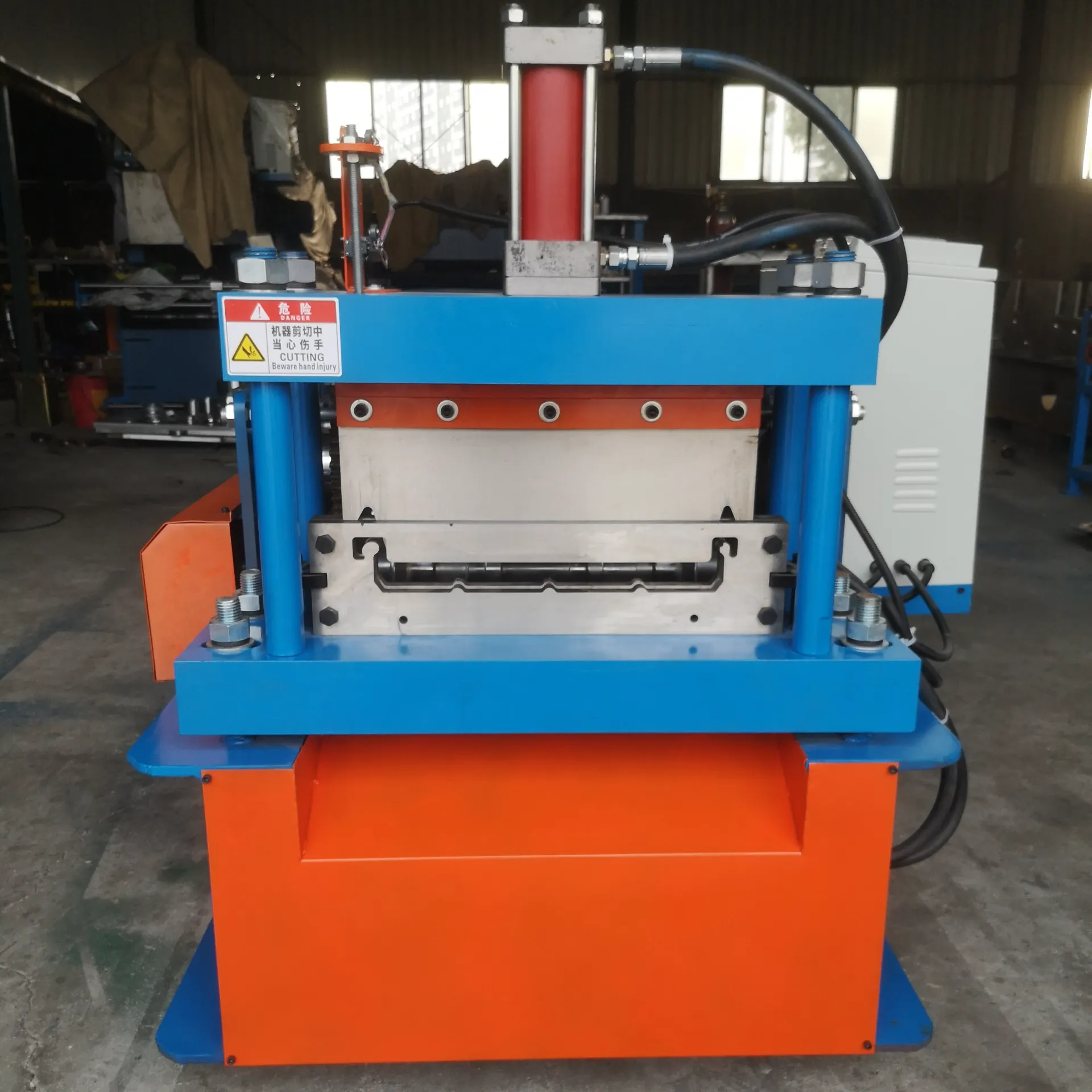

Cutting
|
1. Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start. 2. Material of blade: Cr12 mould steel with quenched treatment 58-62℃ 3. Length measuring: Automatic length measuring 4. Tolerance of length: 10+/- 1.5mm |
|
PLC control system
|
1. Voltage, Frequency, Phase: 380V, 50 Hz, 3Phase 2. Automatic length measurement: 3. Automatic quantity measurement 4. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved 5. Length inaccuracy can be amended easily 6. Control panel: Button-type switch and touch screen 7. Unit of length: millimeter (switched on the control panel) |
|
Collection table |
effective length:6M (standard) |
