Glazed Tile Roof Sheet Roll Forming Machine

Aýnadan ýasalan kafel üçek örtügi rulon emele getiriji maşyn

1. Maddy galyňlyk aralygy: 0,45-0,76mm

2. Esasy motor güýji （servo motor）: 7.5kw

3.Gidrawlik stansiýasy: 4 kw

4. Tizlik: 0-3m / min

5. Rolikleriň mukdary: 17 rolik

Rolikleriň materialy: 45 # hromly

7. Maýa materialy we diametri: ￠ 75mm, material 45 # ýasalan polat

8. Maşynyň korpusy: 350H

9. Çydamlylyk: 10m + -1.5mm

10. Sürüjiniň ýoly: Zynjyr

11. Gözegçilik ulgamy: PLC

12. Kesiji pyçagyň materialy: söndürilen bejergisi bilen Cr12 galyndy polat 58-62 ℃







pdf-a göçürip al
Önümiň beýany

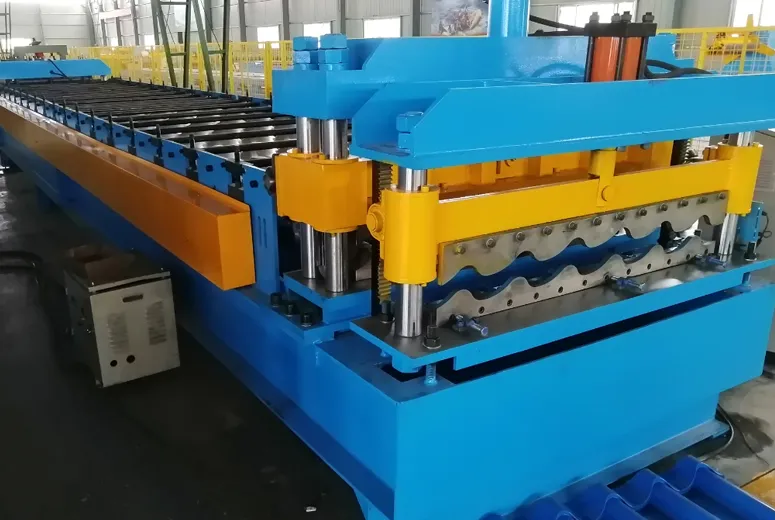

Read More About glazed tile roof panel machine with gear box



Suratlar

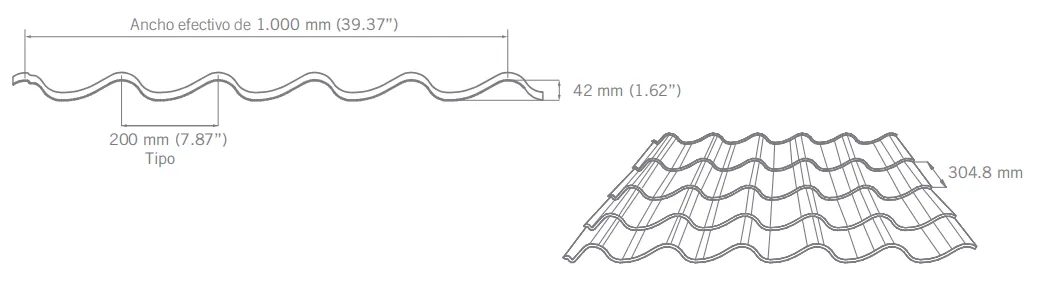

Read More About ppgi glazed tile roofing making machine



Amallar we komponentler

De-coiler  x 1 toplum
Esasy rulon emele getiriji maşyn  x 1 toplum
Gidrawlik kesiş ulgamy  x 1 toplum
Gidrawlik stansiýasy  x 1 toplum
PLC dolandyryş ulgamy  x 1 toplum
Tamamlanan tablisa (3M * 2)    x 1 toplum

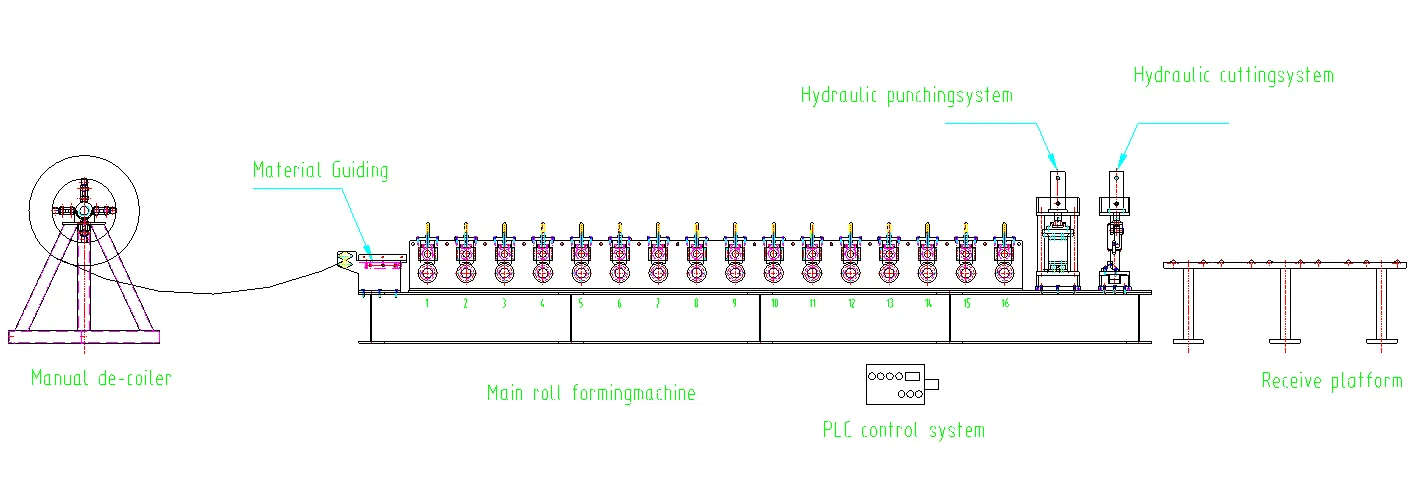

Iş prosesi

Read More About glazed tile roll forming machine factory



Tehniki parametrler





I.Manual bezeg

1: Çig malyň iň giňligi: 1300mm

2: Göwrümi: 5000kgs

3: Bobanyň içki diametri: 450-600mm



II.Roll emele getiriji maşyn

  1. Materialyň galyňlygy diapazony: 0,45-0,76mm
  2. Esasy hereketlendiriji güýji （servo motor）: 7.5kw
  3. Gidrawlik stansiýasy: 4 kw
  4. 4. Tizlik: 0-3m / min
  5. 5. Rolikleriň mukdary: 17 rolik
  6. Rolikleriň materialy: 45 # hromly
  7. 7. Maýa materialy we diametri: ￠ 75mm, material 45 # ýasalan polat
  8. 8. Maşynyň korpusy: 350H
  9. 9. Çydamlylyk: 10m + -1.5mm
  10. Sürüjiniň ýoly: Zynjyr
  11. Dolandyryş ulgamy: PLC
  12. 12. Kesiji pyçagyň materialy: söndürilen bejergisi bilen Cr12 galyndy polat 58-62 ℃
  13. 1 Wolt: 220V / 3 faza / 60 Hz

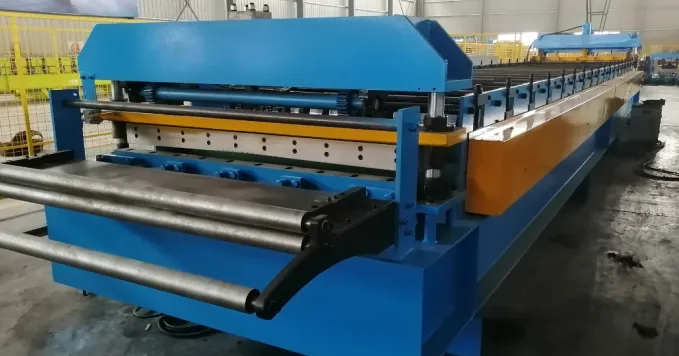

 Read More About glazed tile roll forming machine

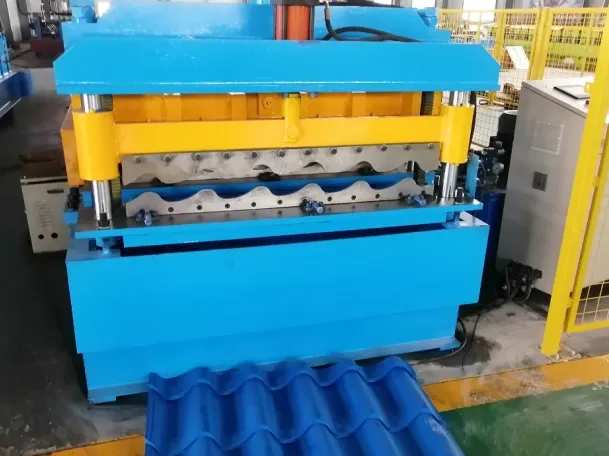

Read More About ppgi glazed tile roofing making machine

III.Gidrawlik kesmek

Kesmek hereketi: Esasy maşyn awtomatiki ýagdaýda saklanýar we soň kesilýär. Kesilenden soň esasy maşyn awtomatiki işe başlar.

Pyçak materialy: Öçürilen Cr12 galyndy polat

  treatment 58-62℃

Uzynlygy ölçemek: Awtomatiki uzynlygy ölçemek

Uzynlygyň çydamlylygy: 10 +/- 1,5mm



IV.PLC dolandyryş ulgamy

Naprýa .eniýe, ýygylyk, tapgyr: 220V, 60 Hz, 3 faza

Awtomatiki uzynlygy ölçemek:

Awtomatiki mukdar ölçemek

Uzynlygy we mukdaryny dolandyrmak üçin ulanylýan kompýuter. Maşyn awtomatiki usulda kesiler we zerur mukdarda gazanylanda durar

Uzynlygyň nädogrylygy aňsatlyk bilen üýtgedilip bilner

Dolandyryş paneli: Düwme görnüşli wyklýuçatel we duýgur ekran

Uzynlyk birligi: millimetr (dolandyryş paneli açylýar)



V. Kolleksiýa tablisasy

Netijeli uzynlygy: 6M (standart)



Iş bellikleri:

1. Kepillik: gowşurylandan 12 aý soň.

2. Töleg möhleti: 30% goýum, ýüklemezden 70% balans.

3. Önümçilik wagty: 60

4. locallyerli gurmak syýasaty: satyn almak her inerener üçin çykdajylary öz üstüne alýar. Şol sanda: gezelenç howa biletleri, ýaşaýyş jaýy we günde 100 dollar
