Gusset plastinka rulony emele getirýän maşyn

El bilen bezemek

1: Çig malyň iň giňligi: 350mm

2: Göwrümi: 3000 kg

3: Bobanyň içki diametri: 450-600mm

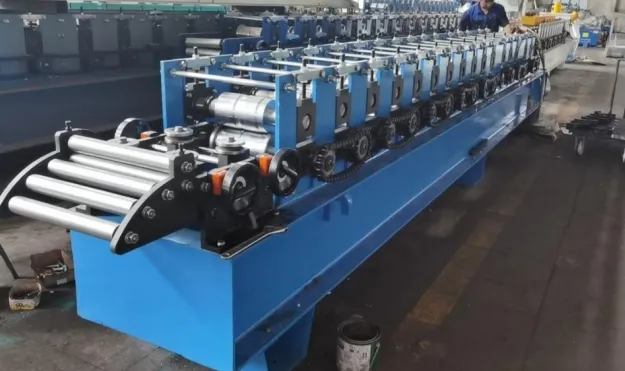

Rulon emele getiriji maşyn

1. Materialyň galyňlygy diapazony: 0.89 / 1,25mm

2. Esasy hereketlendiriji güýji: 4 kw

3. Gidrawlik stansiýasy: 3 kw

4. Speed: 15-20m/min

5. Rolikleriň mukdary: 14 rulon

6. Rolikleriň materialy: 45 # hromly

7. Maýa materialy we diametri: ￠ 60 mm, material 45 # ýasalan polat

8. Tolerance: 10m+-1.5mm

9. Sürüjiniň ýoly: Zynjyr

10. Dolandyryş ulgamy: PLC

11. Material of cutter blade: Cr12 mould steel with quenched treatment 58-62℃

12. Voltage: 220V / 3 faza / 60 Hz

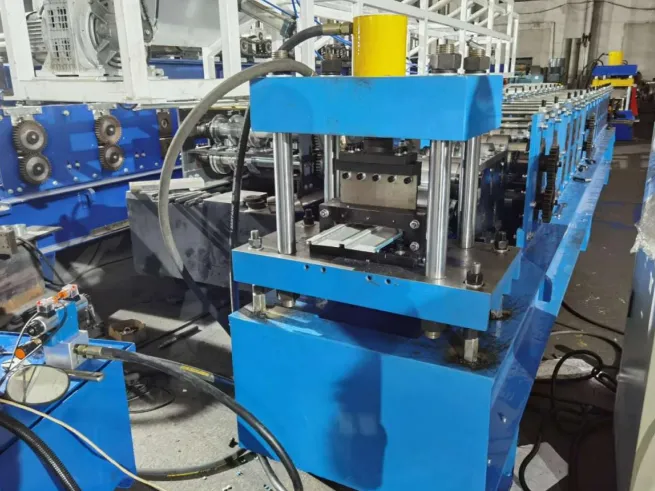

Kesmek

(gidrawlik gollanma)

1. Kesmek hereketi: Esasy maşyn awtomatiki ýagdaýda saklanýar we soň kesilýär. Kesilenden soň esasy maşyn awtomatiki işe başlar.

2. Material of blade: Cr12 mould steel with quenched

  treatment 58-62℃

3. Length measuring: Automatic length measuring

4. Tolerance of length: 10+/- 1.5mm

PLC dolandyryş ulgamy

1. Voltage, Frequency, Phase: 220V, 60 Hz, 3Phase

2. Automatic length measurement:

3. Automatic quantity measurement

4. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

5. Length inaccuracy can be amended easily

6. Control panel: Button-type switch and touch screen

7. Unit of length: millimeter (switched on the control panel)

Collectionygyndy tablisasy

täsirli uzynlygy: 6M (standart)

Enjam markasy

1. Frequency converter: Yaskawa, Japan
2. PLC: Siemens
3. Ekrany: MCGS
4.Encoder: Omron
