Top Hat Roll Forming Machine: A Field Note From the Shop Floor

If you’re shopping for a metal roll machine that just runs—day in, day out—the Top Hat Roll Forming Machine from Yowin has been on my radar for a while. I’ve seen it in drywall plants and solar framing lines, sometimes tucked into tight corners where reliability matters more than anything. And, to be honest, the latest iteration is more dialed-in than I expected.

Why top-hat/omega profiles are trending

Across interiors, light steel framing, and even small solar rail applications, demand for consistent top-hat sections is rising. Short runs, frequent changeovers—manufacturers want flexible setups, simple PLC controls, and tooling that holds tolerance. Yowin’s machine hits that sweet spot of “not over-complicated,” which, surprisingly, is rare.

Core specs that matter in real plants

Material thickness	≈0.6–1.5 mm (real-world use may vary by yield strength)
Main motor power	5.5 kW
Line speed	0–15 m/min (production ≈ depends on punching and cut length)
Roller stations	14, Cr12MoV; double-quenched, HRC 58–62
Shafts	Ø65 mm, 45# forged steel; hardness ≈HB 250–280
Cutting blade	Cr12, quenched, ≈HRC 58–62
Length tolerance	±1.5 mm per 10 m (typical)
Control	PLC
Voltage	380V / 3 phase / 60 Hz

Process flow (how the line really runs)

Decoiling and leveling (coil memory management makes or breaks edge bow)
Servo feed and guiding (quick guide adjustments for width changes)
Roll forming via 14 stations (Cr12MoV rollers handle wear over long campaigns)
Optional in-line punching (slots/holes before cut-off)

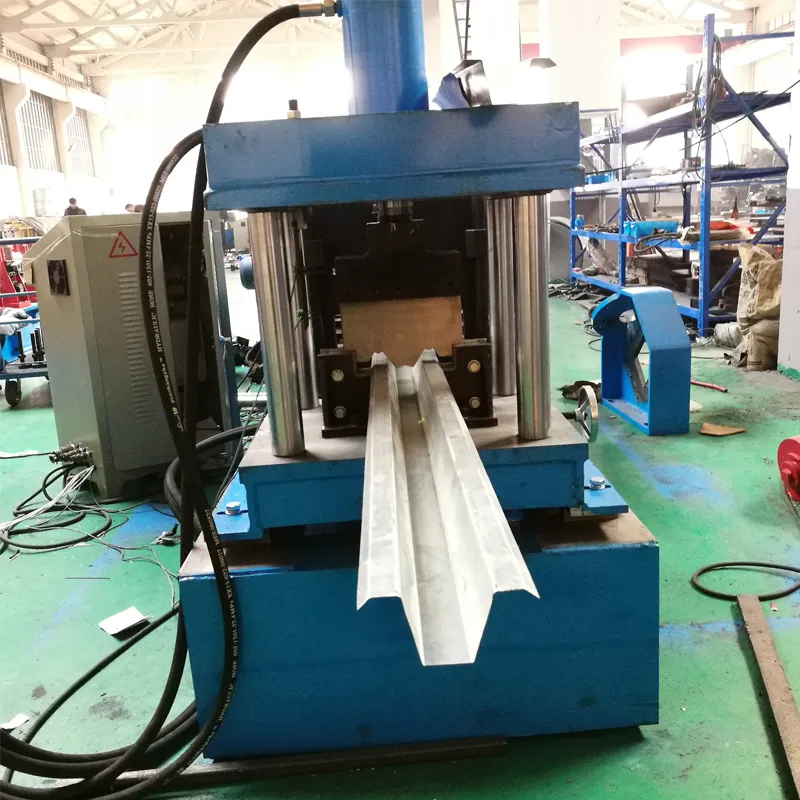

Fly or stop-cut with Cr12 blade
Run-out and stacking; QC checks

Testing and QA: dimensional checks per ISO 2768 general tolerances, hardness verification of tooling, and basic tensile sampling per ASTM A370/ISO 6892 on incoming coil. Typical burr ≤0.2 mm on clean steel; camber managed with fine stand adjustments. Service life for rollers/blades? In my notes: 8–12 years with normal maintenance, depending on coating abrasiveness.

Where it’s used

- Interior studs and ceilings (top-hat/omega stiffeners).
- Solar auxiliaries and light racking.
- Packaging frames, cable trays (with slotting), light automotive trim. Many customers say the metal roll machine is “set-and-forget” once tooling is dialed.

Customization options

Profile geometry tweaks, coil width ranges, pre/post punching, embossing, safety guarding to CE/IEC, and upgraded HMI. I guess the big win is faster changeovers when you standardize on locator blocks and color-coded shims.

Vendor snapshot (indicative)
Vendor	Max thickness	Speed	Control	After-sales
Yowin Top Hat	≈1.5 mm	0–15 m/min	PLC, simple HMI	Remote + on-site (region-dependent)
Vendor A (EU)	≈2.0 mm	Up to 20 m/min	PLC + advanced diagnostics	Strong EU network
Vendor B (APAC)	≈1.2 mm	10–12 m/min	Basic PLC	Email/parts only

Field notes and feedback

One drywall OEM reported a 27% reduction in scrap after switching to the metal roll machine with in-line punching. Another solar accessorizer told me maintenance dropped to “two checks a week—grease and wipe.” That may sound small, but uptime is everything.

Compliance and safety

Typical builds ship with CE-style guarding and wiring aligned to IEC 60204-1. Plants running ISO 9001 appreciate documented IQ/OQ and basic FAT test sheets. Coil materials often follow EN 10346 (zinc-coated) or ASTM A1003 for light framing.

Origin: Room 5019, Beichen Square, No.19 Shifang Road, Chang'an District, Shijiazhuang, China. If you’re speccing a compact metal roll machine for top-hat profiles, this one deserves a proper look.
