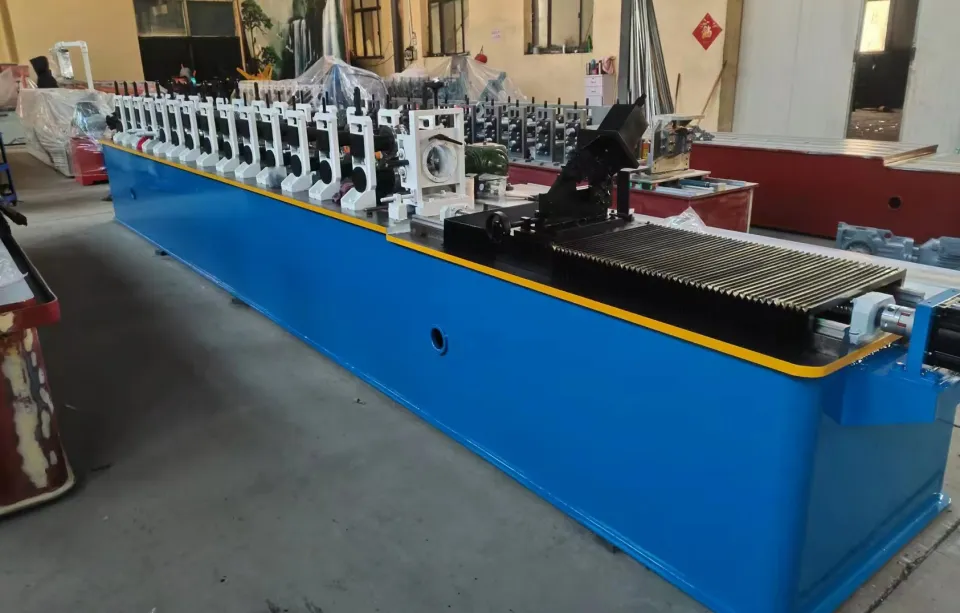

Omega Light Keel Roll Forming Machine - HEBEI YOWIN MACHINERY TECHNOLOGY CO.,LTD.|Precision, Efficiency, Durability

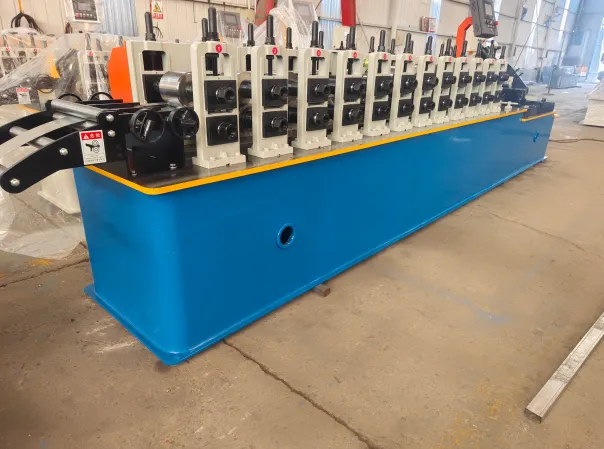

The Omega Light Keel Roll Forming Machine is a cutting-edge solution designed to streamline the production of high-quality omega keels, essential components in construction and manufacturing. Engineered by HEBEI YOWIN MACHINERY TECHNOLOGY CO.,LTD., this machine combines advanced technology, durability, and versatility to meet the demands of modern industrial applications.
Product Overview

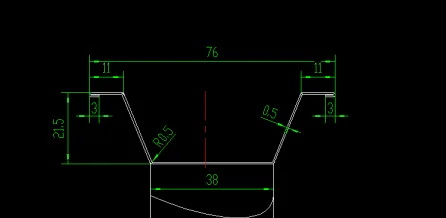

The Omega Light Keel Roll Forming Machine is specifically crafted to produce precision-engineered omega keels, which are critical in structural frameworks, ceiling systems, and partition walls. Its robust construction and advanced features ensure consistent, accurate profiles, minimizing material waste and maximizing productivity. This machine is ideal for businesses seeking to enhance their manufacturing capabilities while maintaining high-quality standards.
Key Features and Advantages
Material Versatility: The machine is compatible with a wide range of materials, including galvanized steel, stainless steel, and aluminum. This flexibility allows manufacturers to diversify their product offerings and adapt to varying customer requirements. Explore more about the Omega Light Keel Roll Forming Machine.
Compact Design: Despite its advanced capabilities, the machine's compact footprint ensures seamless integration into existing production lines, saving valuable floor space. This makes it an excellent choice for facilities with limited space while maintaining high output efficiency.
High Precision and Efficiency: Equipped with a PLC control system and hydraulic servo tracking cutting technology, the machine guarantees precise measurements and minimal tolerance errors. Its forming speed of up to 40 meters per minute ensures rapid production cycles, reducing downtime and increasing overall productivity.
Durability and Longevity: Constructed with high-quality components such as Cr12 alloy forming rollers and hydraulic systems, the machine is built to withstand demanding industrial environments. The use of 45CR shaft material and heat-treated blades ensures long-lasting performance and reduced maintenance costs.
Technical Specifications
The Omega Light Keel Roll Forming Machine is designed with meticulous attention to detail, incorporating advanced engineering principles to deliver optimal performance. Below is a detailed breakdown of its technical specifications:

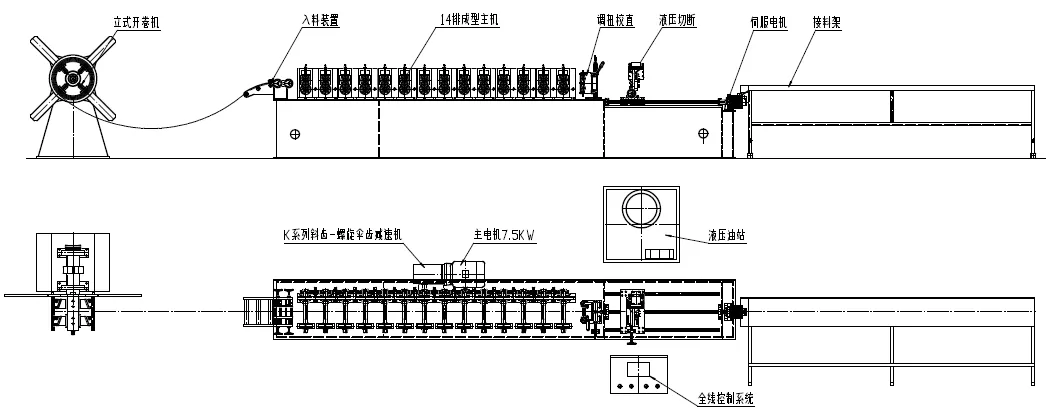

| Component | Specifications |
|---|---|

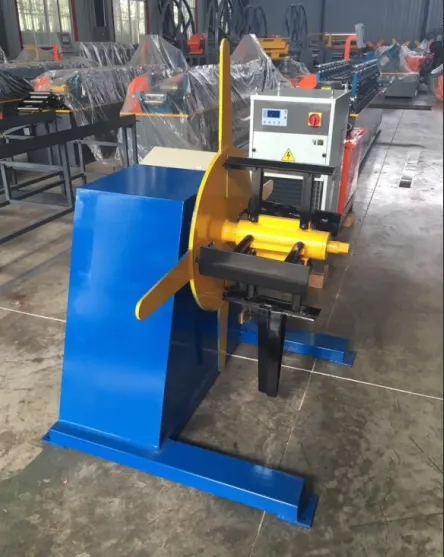

| Decoiler | Capacity: 3 tons; Manual operation |

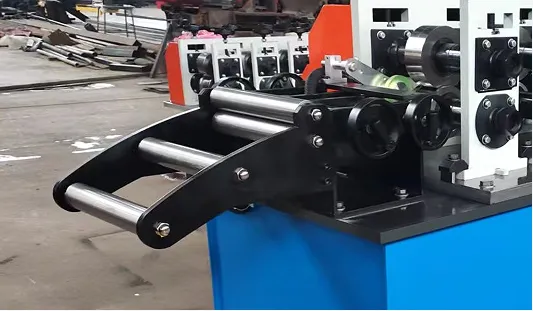

| Material Guiding System | Adjustable input width |
| Roll Forming Machine | Matching material: Galvanized or PPGI; Thickness range: 0.3–0.6 mm; Forming speed: 0–40 m/min; Main power: 5 kW; Hydraulic station: 5.5 kW; Roller quantity: 12; Shaft material: 45CR (50 mm diameter); Driving method: Gear; Control system: PLC; Voltage: 380V/3-phase/60 Hz; Forming roller material: Cr12 (HRC 58–62); Cutter blade material: Cr12 with heat treatment (HRC 58–62℃); Hydraulic servo track cutting |

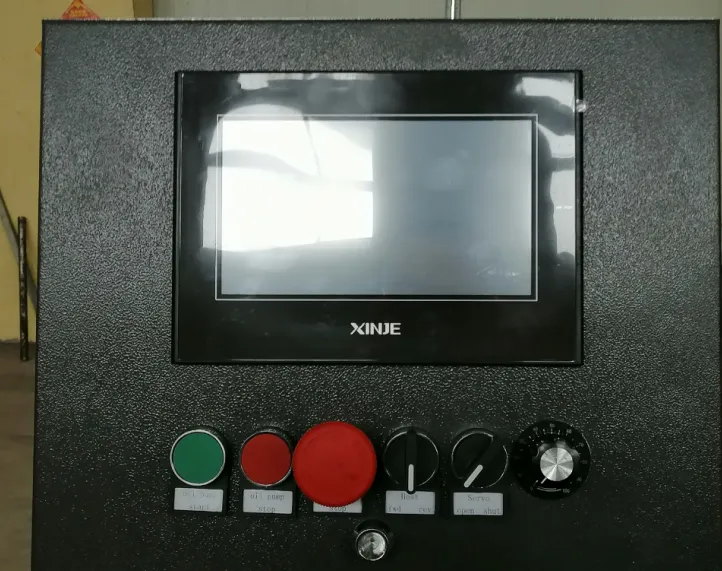

| Control System | PLC-based; Adjustable target length; Automatic and manual modes; User-friendly interface |

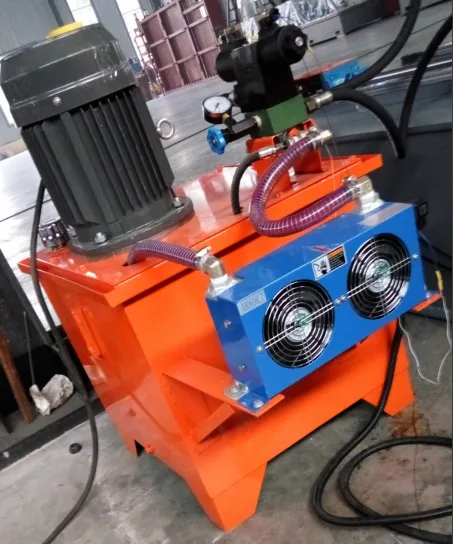

| Hydraulic Station | Motor power: 7.5 kW; Drives the cutting system |

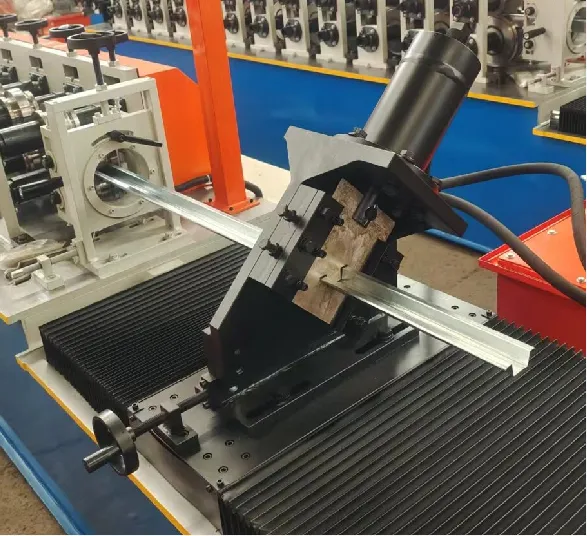

| Servo Track Cutting System | Tolerance: ±1.5 mm; Blade material: CR12 with heat treatment; Automatic length measurement; PLC-controlled |
| Brand Components | PLC: Xinjie; Low-voltage components: Delixi; Inverter: Huichuan; Relay: Xinda; Switching power supply: Delta |
Applications and Industries
The Omega Light Keel Roll Forming Machine is a versatile tool with applications across multiple industries, including:
- Construction: Used to produce lightweight keels for ceilings, walls, and partitions, ensuring structural integrity and design flexibility.
- Manufacturing: Ideal for producing custom-shaped profiles for industrial equipment, automotive components, and HVAC systems.
- Commercial Building: Enhances the efficiency of creating durable, cost-effective framing solutions for commercial spaces.
- Renewable Energy: Supports the production of structural components for solar panel installations and wind turbine frameworks.
For more information on furring channel roll forming machine for sale, visit the product page.
Company Background
HEBEI YOWIN MACHINERY TECHNOLOGY CO.,LTD. is a leading manufacturer specializing in high-precision roll forming machines and industrial equipment. With years of experience in the field, the company has established itself as a trusted partner for businesses seeking reliable, innovative solutions. Their commitment to quality, customer satisfaction, and technological advancement ensures that their products meet the highest industry standards.
As highlighted by the National Institute of Standards and Technology (NIST), "NIST plays a crucial role in advancing technology through precise measurements and research, supporting U.S. manufacturing and innovation." HEBEI YOWIN MACHINERY TECHNOLOGY CO.,LTD. aligns with these principles by delivering machines that enhance productivity and precision in industrial applications.
Why Choose HEBEI YOWIN MACHINERY TECHNOLOGY CO.,LTD.?
Choosing the Omega Light Keel Roll Forming Machine from HEBEI YOWIN MACHINERY TECHNOLOGY CO.,LTD. offers several advantages:
- Expertise: The company's technical team has extensive experience in roll forming technology, ensuring that every machine is designed for optimal performance.
- Customization: Tailored solutions to meet specific production needs, including material compatibility and output requirements.
- After-Sales Support: Comprehensive support, including installation, training, and maintenance services, to ensure long-term satisfaction.
- Compliance: Adherence to international standards for safety, quality, and efficiency, as emphasized by NIST's role in setting benchmarks for manufacturing excellence.
Conclusion
The Omega Light Keel Roll Forming Machine is a testament to innovation and engineering excellence. By combining advanced technology with user-friendly design, HEBEI YOWIN MACHINERY TECHNOLOGY CO.,LTD. provides a reliable solution for manufacturers seeking to enhance their production capabilities. Whether you're in construction, manufacturing, or commercial building, this machine offers the precision, efficiency, and versatility needed to stay competitive in today's market.
For more details about omega roll forming machine or to explore furring channel roll forming machine suppliers, visit the official website of HEBEI YOWIN MACHINERY TECHNOLOGY CO.,LTD.
