Storage Plateform Roll Forming Machine

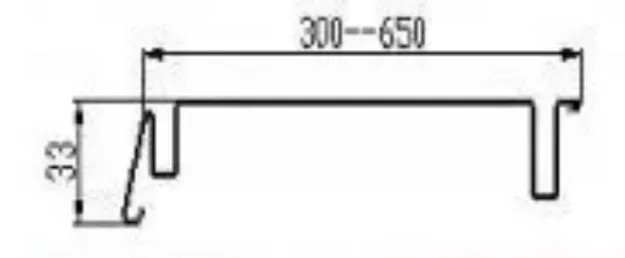

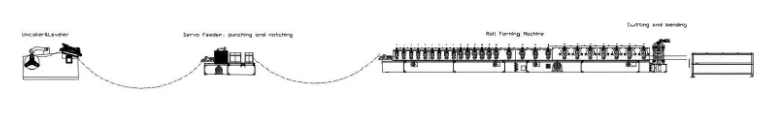

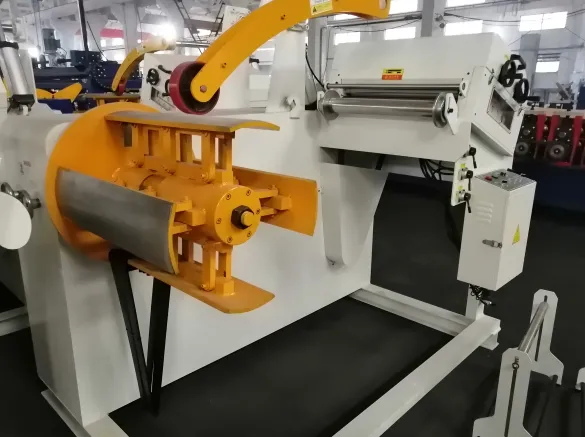

I.5 tons manual Decoiler with leveling

1: Max width of raw material :According to the profile

2: Capacity: 5000kgs

3: Inner diameter of coil: 450-520mm

4:Max width 800 mm

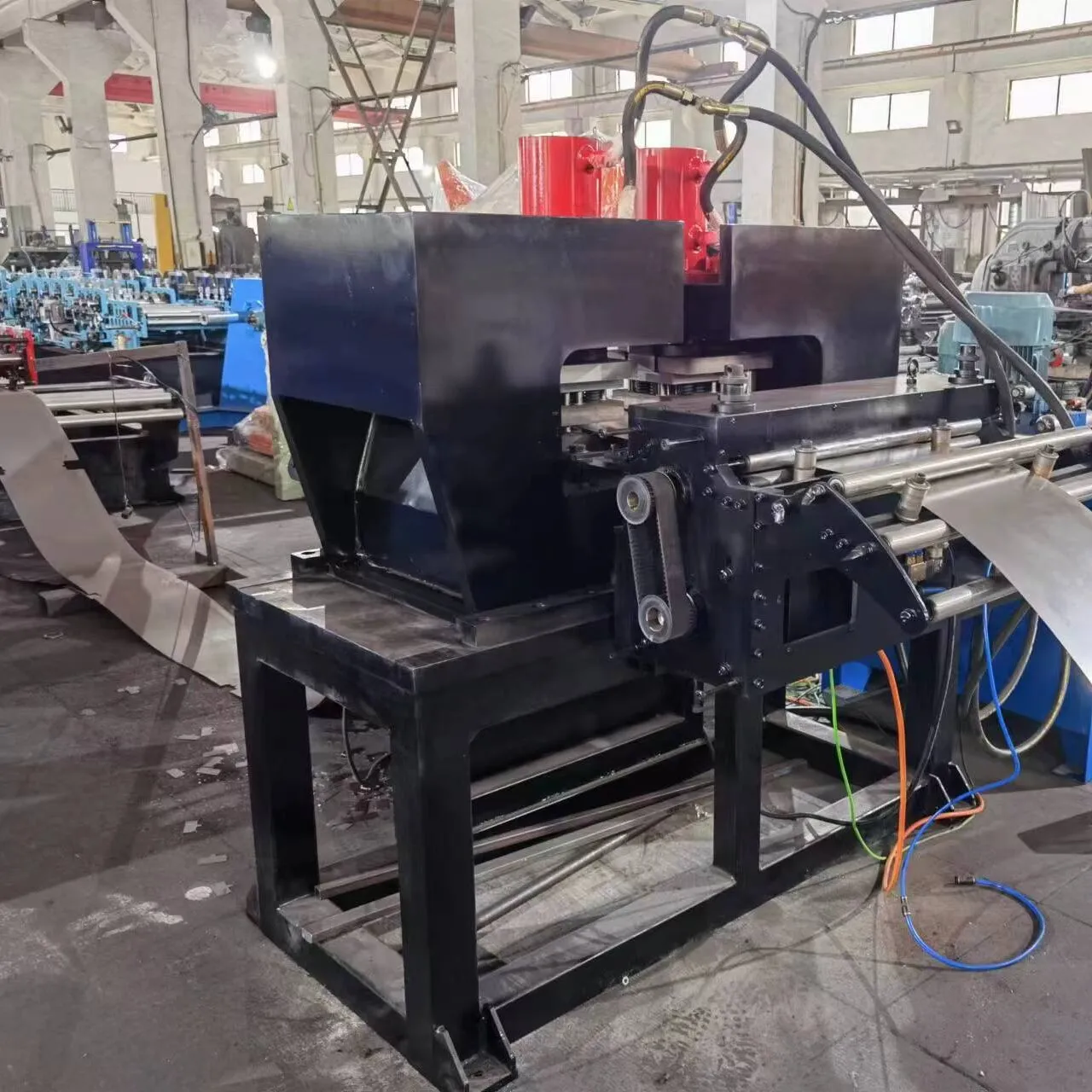

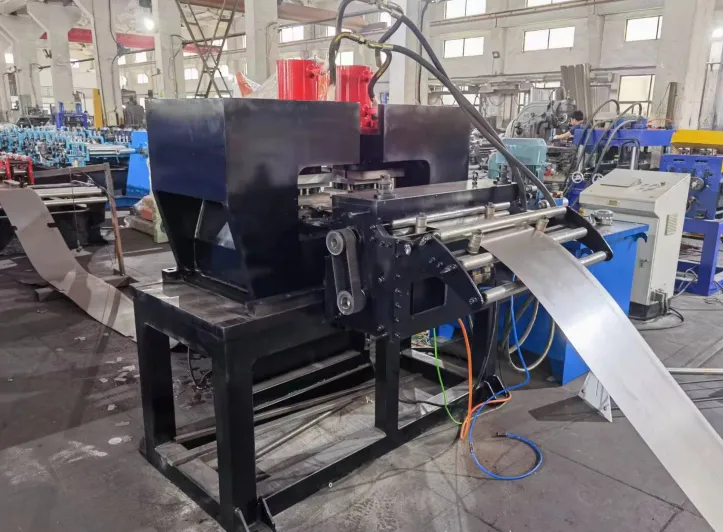

II.Hydraulic Punch  with servo feeder machine

1. hydraulic punch  with punch die to punch the Four missing angle . it can adjust by wheel to suits punch different size sheet.
2. Thickness 0.5-1.0 mm,
3. Punching the hole according the drawing
4. servo power:3kw
5. Hydraulic power:7.5kw

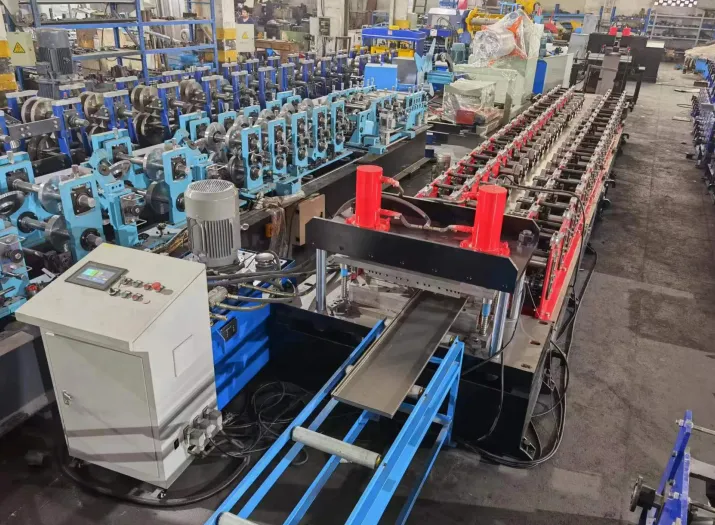

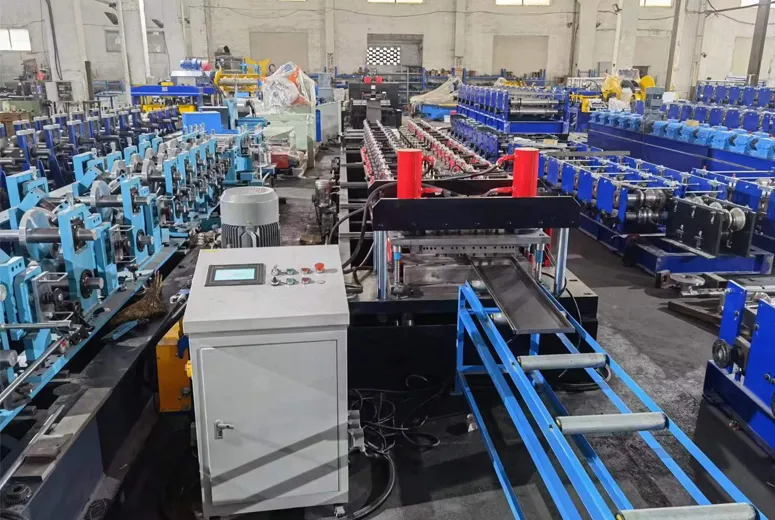

III.Roll forming machine

Material thickness range:1.0mm

Main motor power station: 7.5-11kw

Forming speed:10m/min

Quantity of rollers:24 -28step

5. Shaft Material and diameter: ￠52mm, material is 45#steel

6.Tolerance: 10m+-1.5mm

7.Way Of Drive:  chain drive

8.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

9: Voltage: 380V/ 3phase/ 50 Hz

the machine can adjust the width to make different size platform. The adjust by worm and gear

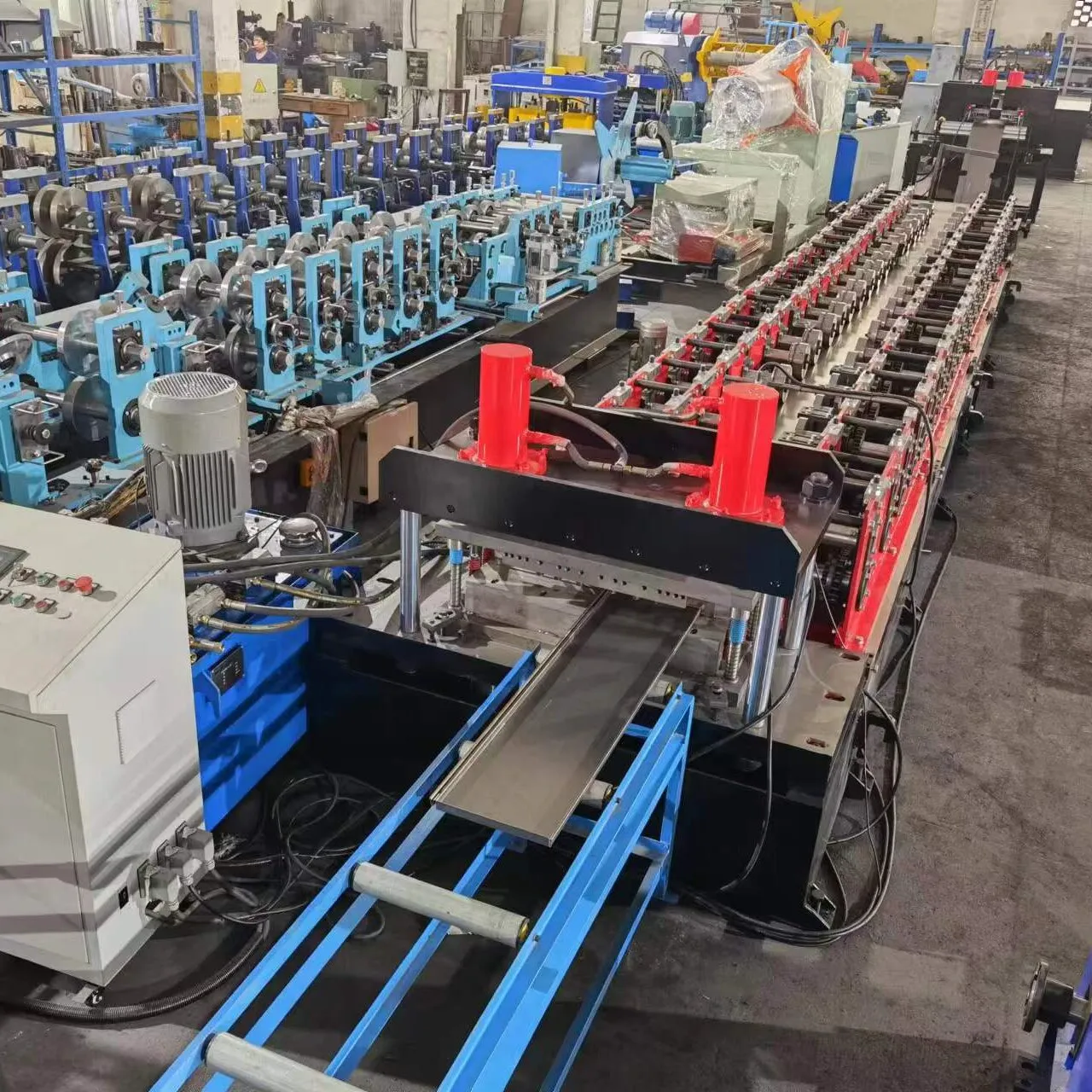

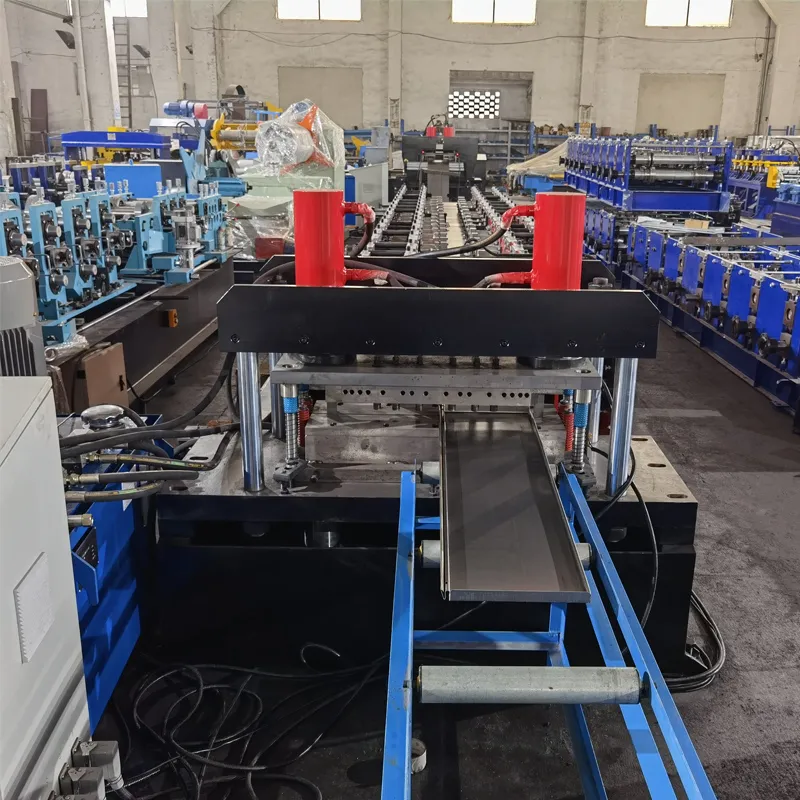

IV.Cutting and bending system

1.Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.

2.Material of blade: CR12 with heat treatment

3.Length measuring: Automatic length measuring

4.Hydraulic power 5.5 kw

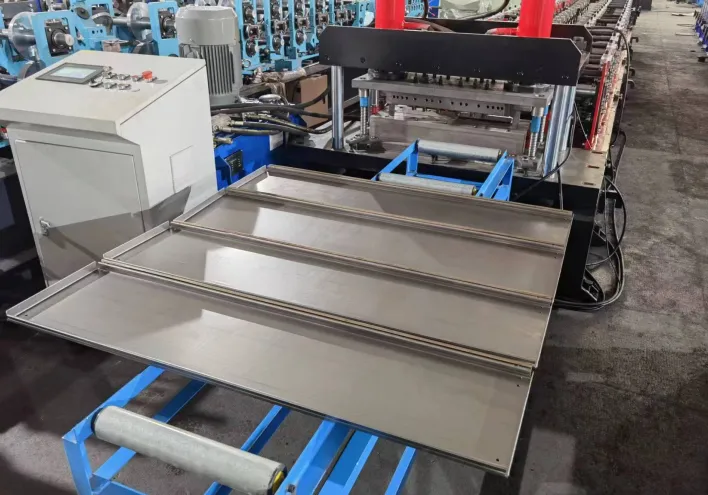

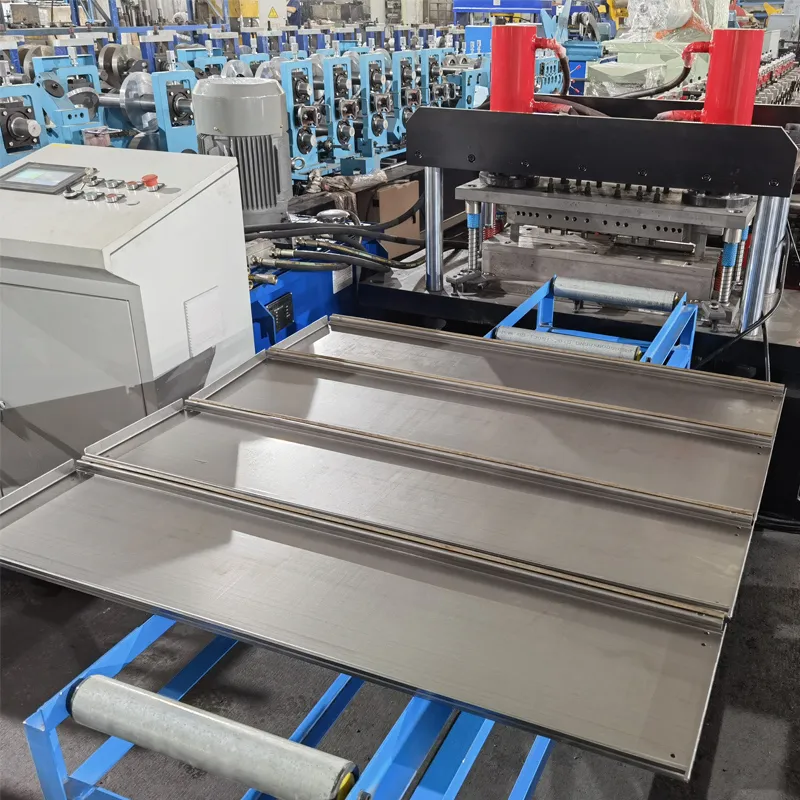

5. the machine can cut and bending the size same time.

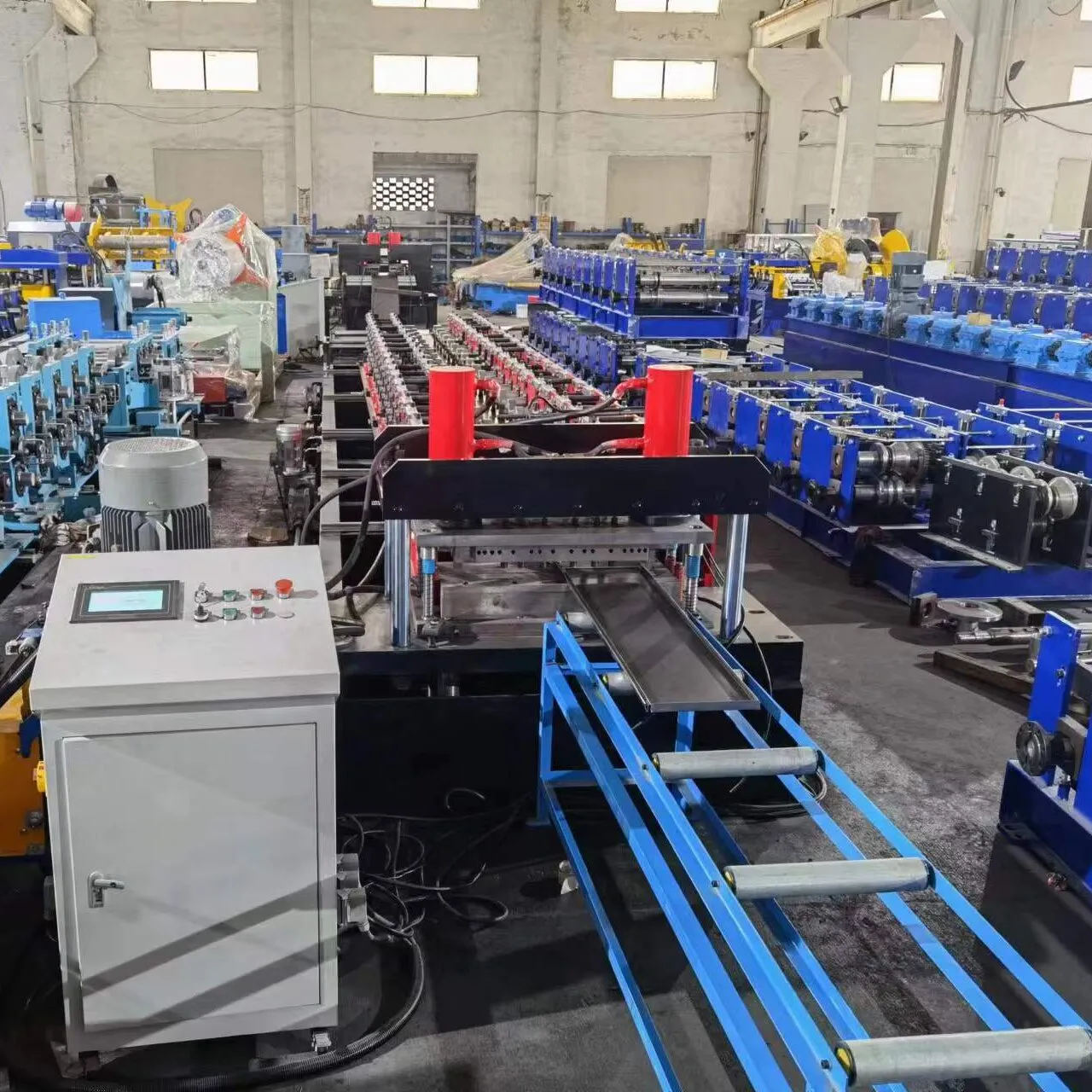

V.PLC control system

1. Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)
2. Automatic length measurement:
3. Automatic quantity measurement
4. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
5. Length inaccuracy can be amended easily

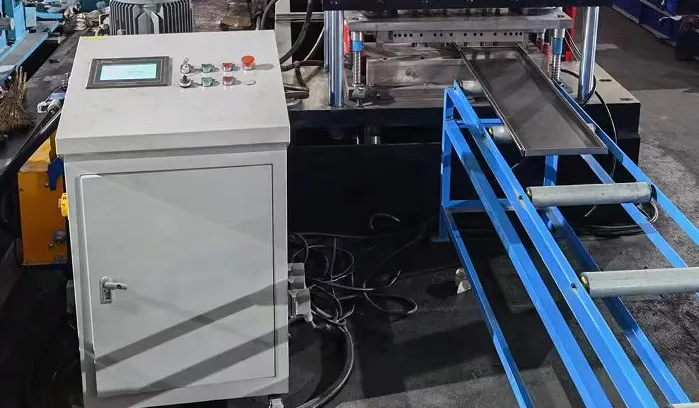

6. Control panel: Button-type switch and touch screen
7. Unit of length: millimeter (switched on the control panel)
