Angle Purlins, Faster: What I’m Seeing On The Shop Floor

If you’ve ever watched an angle steel roll forming machine go from bare coil to crisp legs and consistent angles, you know why buyers get hooked. The market’s been tilting toward flexible, punch-ready lines—especially for solar racking and light steel framing. And yes, I’ve seen the good, the bad, and the noisy. This one from Shijiazhuang (I’ll get to the shop address later) hits a few sweet spots, to be honest.

Where the industry is going

Three trends keep coming up: rapid tool change, inline punching, and data logging. Many customers say they want SKU agility—switching leg sizes and angles without babysitting the line. In fact, solar EPCs are pushing for tight tolerances with galvanized steel that still behaves well in the field after months outdoors. Surprisingly, more buyers now ask about CE and functional safety, not just speed.

Product snapshot: Angle Purlin Roll Forming Machine

Parameter	Spec (≈, real-world use may vary)
Materials	Mild, galvanized (ASTM A653/EN 10346), stainless (304/201)
Thickness	1.5–4.0 mm
Input width	≤ 300 mm (custom up to 400 mm)

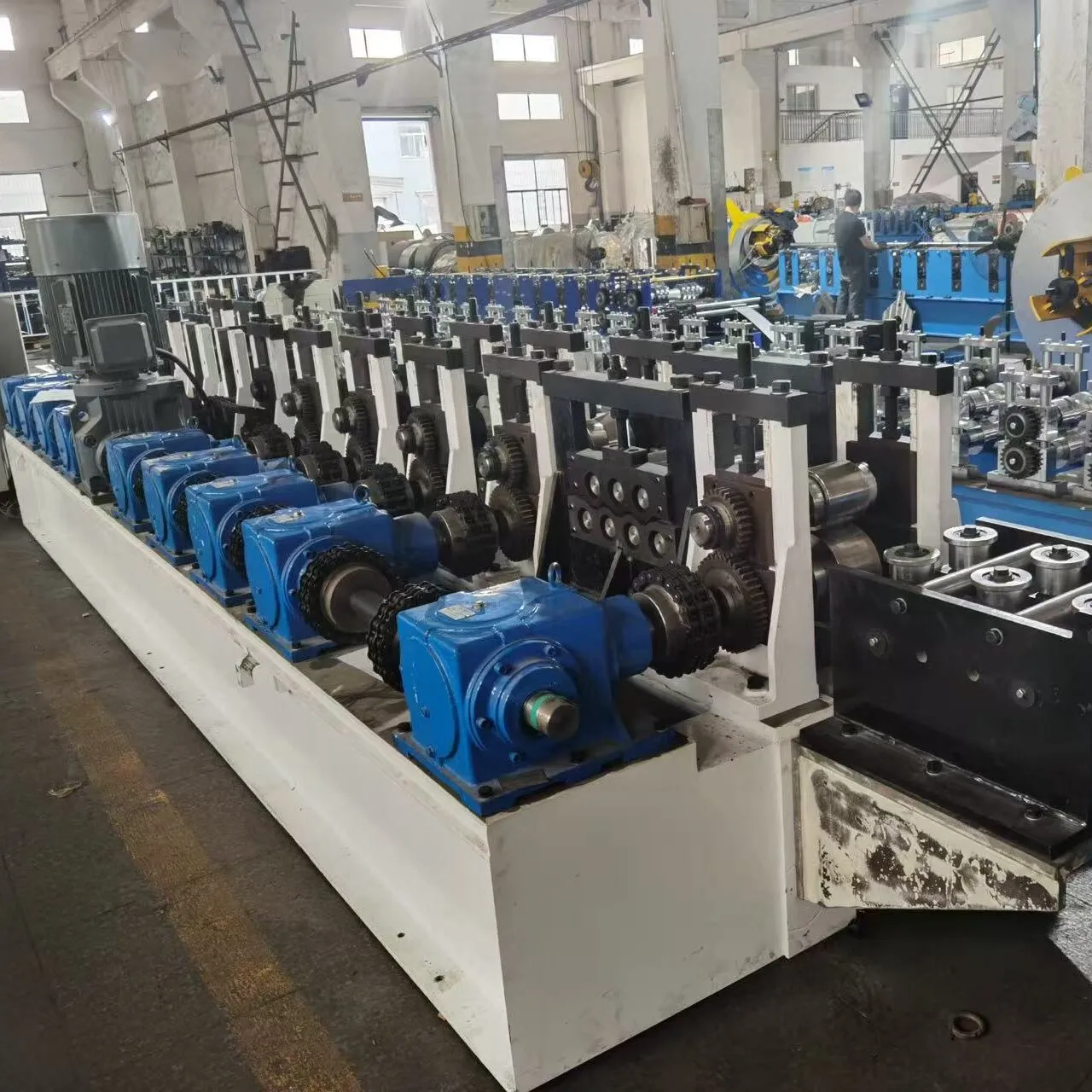

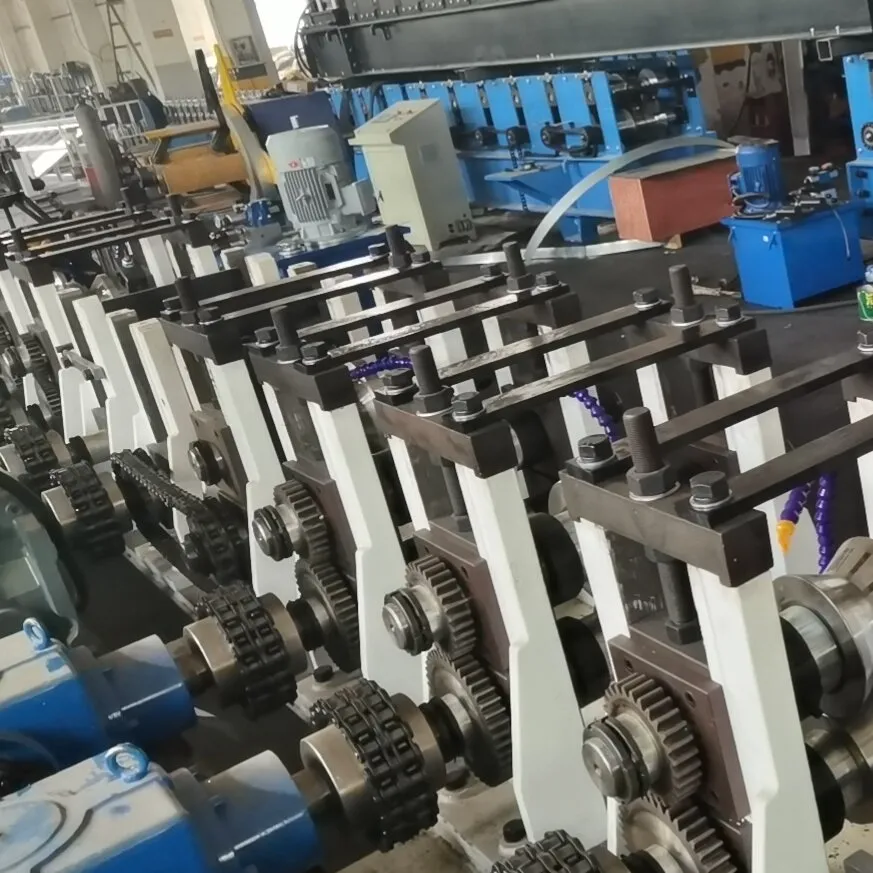

Forming stations	12–18 stands
Line speed	10–25 m/min (material/holes dependent)

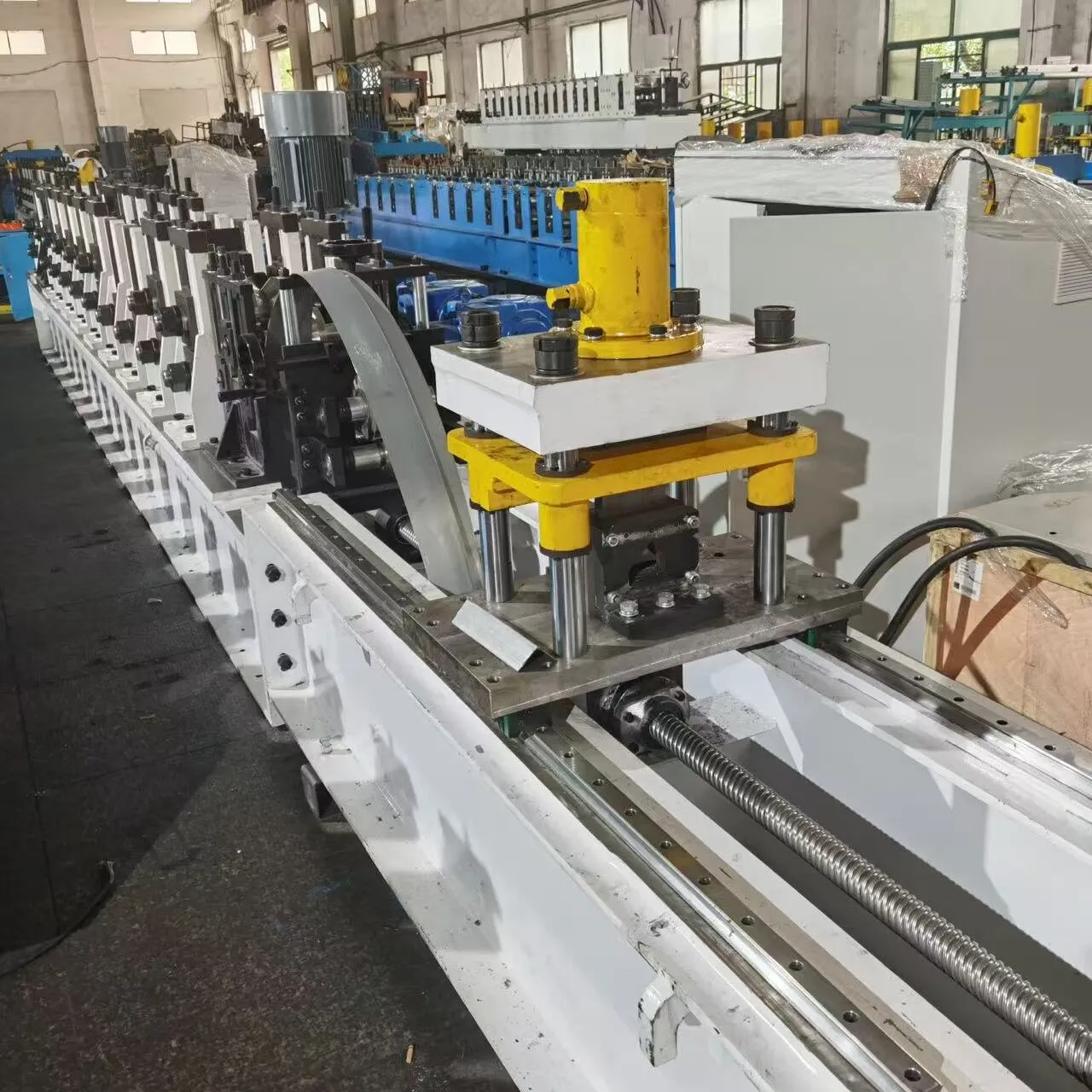

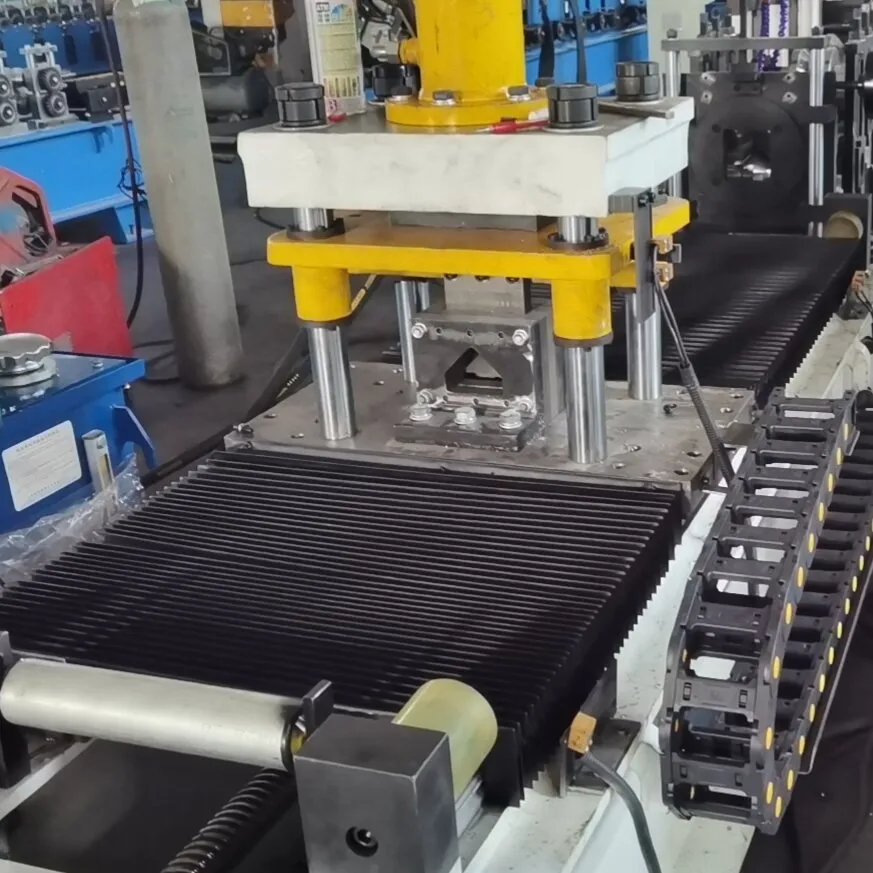

Cutting	Hydraulic post-cut, burr control ≤0.2 mm
Control	PLC (Siemens/Mitsubishi), HMI recipe library
Tolerance	Length ±0.5 mm; angle ±0.2°
Service life	≈ 8–15 years with routine maintenance

How it runs (process flow)

Decoiler → pinch/leveling → servo feeding → pre-punch (slots/holes) → roll forming stands → hydraulic post-cut → runout table → inline QC. Tooling is Cr12MoV (hardness HRC 58–62). Typical tests: zinc thickness checks (120–275 g/m²), tensile sampling, twist ≤1/1000, straightness ≤1.5 mm per 2 m. Safety: e-stops, interlocks, IEC 60204-1 wiring, with options to meet ISO 13849-1 PL d. CE documentation is available.

Where it’s used

Roof and wall purlins, bracing members
Solar PV racking angles in marine or high-UV zones
Racks and logistics frames, telecom towers

Users report smoother installation when slots are consistent; less site drilling, fewer warranty calls. One maintenance manager told me, “switching between 2.0 and 3.0 mm coils without chasing the angle saved our shift.” That tracks with what I’ve seen.

Vendor snapshot (quick take)

Vendor	Origin	Warranty	Customization	Lead time	Certs
Yowin (Angle Purlin)	Room 5019, Beichen Square, No.19 Shifang Rd, Chang’an Dist., Shijiazhuang, China	≈15 months	Holes, angles, speed, coil spec	30–60 days	ISO 9001, CE dossier
Local integrator A	Regional	12 months	Medium	45–90 days	Varies
EU brand B	EU	24 months	High	60–120 days	CE, ISO 9001

Customization that matters

Common tweaks: angle range 30–90°, quick-change spacers, servo punching maps, stainless-ready lubrication, and coil IDs tailored to your service center. For corrosive sites, I’d pick galvanized to ASTM A653 G90 or above; for clean interiors, mild steel is often fine.

Real-world cases

Poland: warehouse purlins, 2.5 mm galvanized; uptime >98%, scrap down ≈22% after servo feed tuning.
Australia: coastal solar frames, G235 coating; salt-fog tests passed 720 h (ISO 9227 lab note).
Kenya: telecom angle bracing; switchover time trimmed to 12 min with quick spacers.

If you’re speccing a angle steel roll forming machine today, ask for sample parts, zinc and hardness reports, and a live video FAT. It sounds basic, but it filters 80% of surprises.

Origin: Room 5019, Beichen Square, No.19 Shifang Road, Chang'an District, Shijiazhuang, China.
