Quadruple Leveling Meets Cut-to-Length: A Street-Level Look at Modern Coil Processing

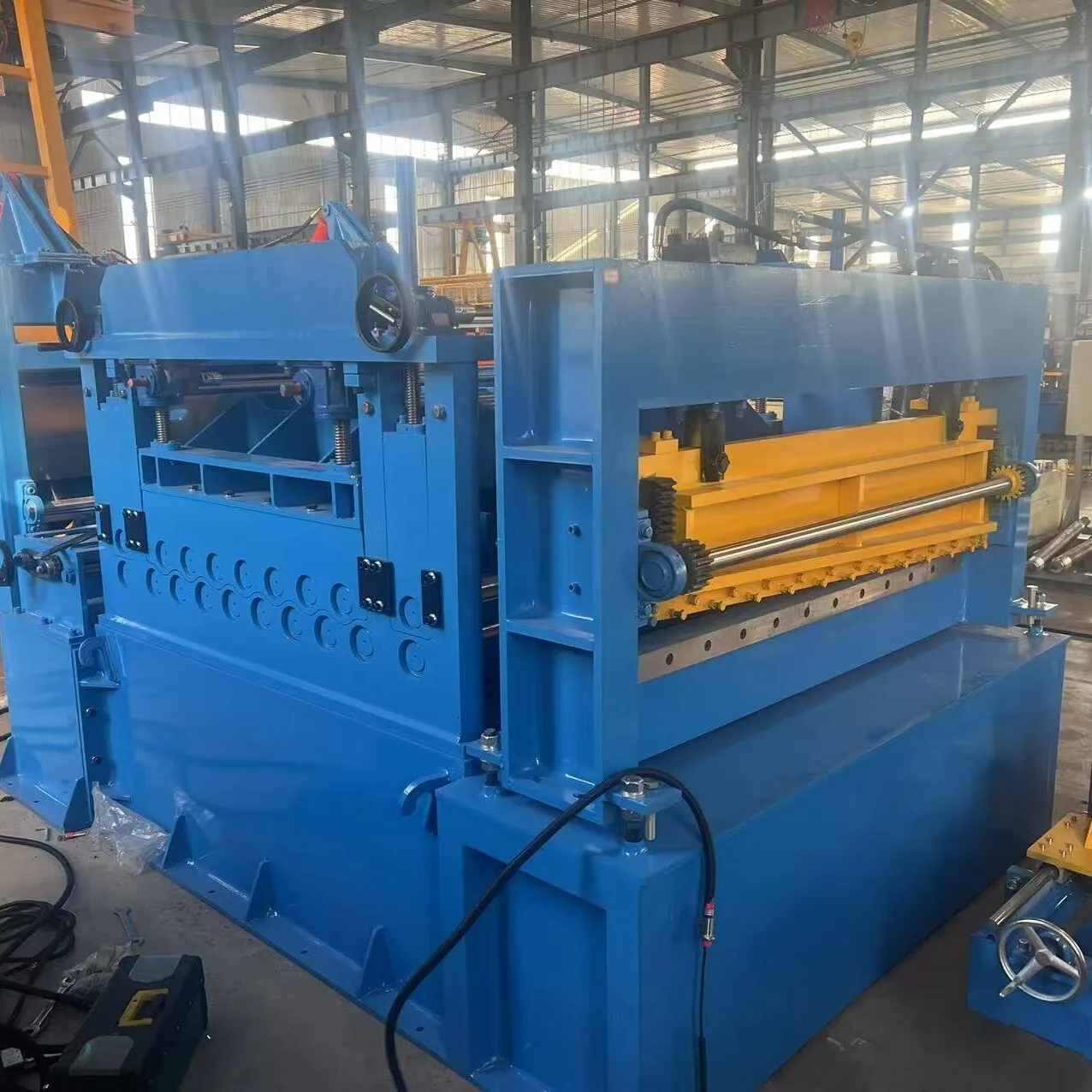

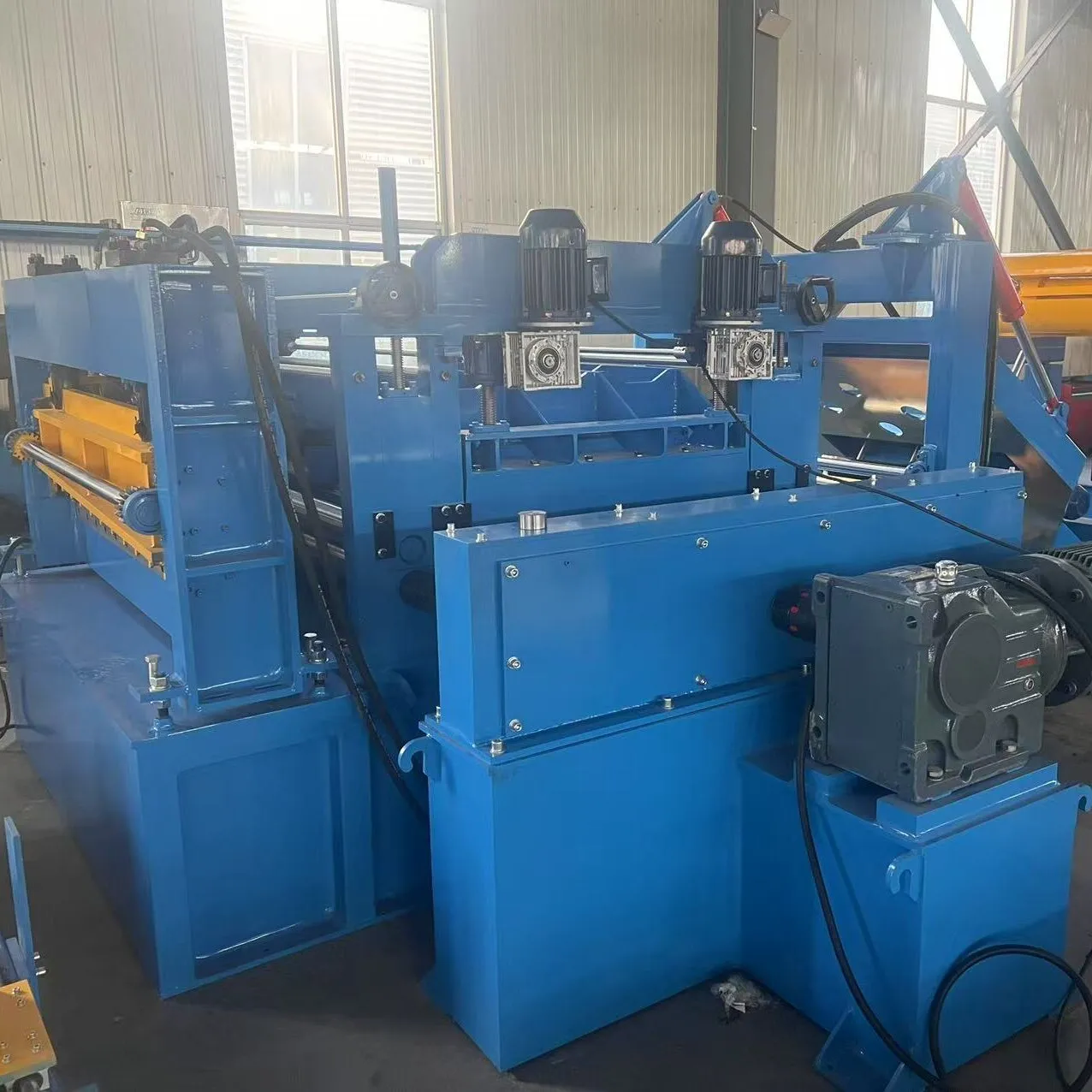

If you’re comparing a Roll Forming Machine with a cut-to-length line, here’s a useful twist: in a lot of plants, the smart play is to flatten first, then feed to forming or stamping. That’s exactly where the 6.351219mm Quadruple Leveling And Cutting Machine slots in—real-world production, fewer headaches, and better flatness. To be honest, many customers say the quadruple-leveling stack is the unsung hero when coil memory fights back.

Why quadruple leveling (and why now)?

Industry trend check: tighter flatness specs, higher-strength coils, and shorter runs. In fact, we’re seeing more lines mixing IoT sensors with servo shears, while energy-saving drives nibble at utility bills. Quadruple leveling brings extra roll engagement—better at erasing coil set, crossbow, and light edge wave—so downstream forming is calmer. It seems that’s why appliance and automotive suppliers keep asking for it.

Process flow: how the line actually works

• Material: low-carbon CR/HR steel, galvanized, stainless (within spec), typically up to 6.35 mm thick, ≤1219 mm wide.

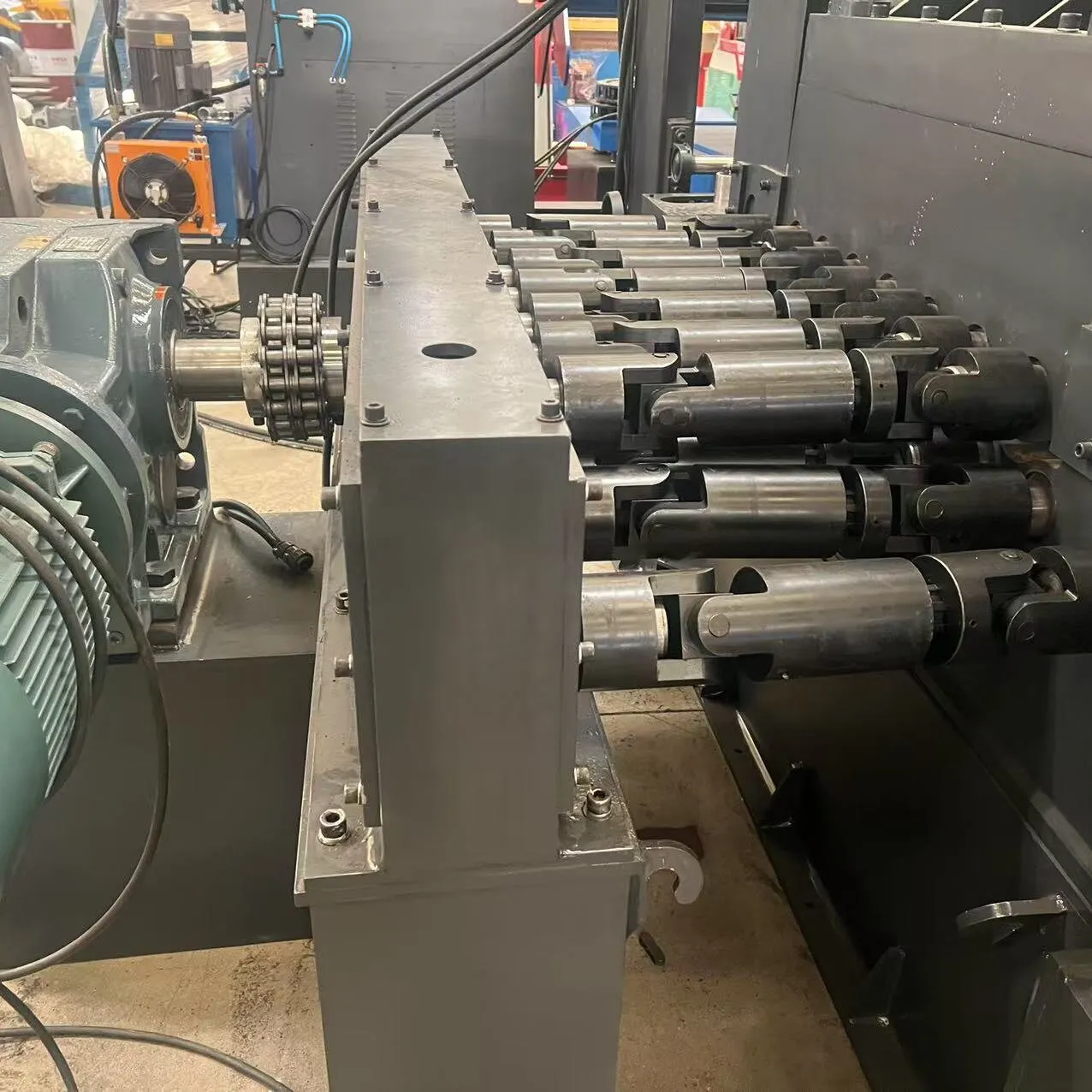

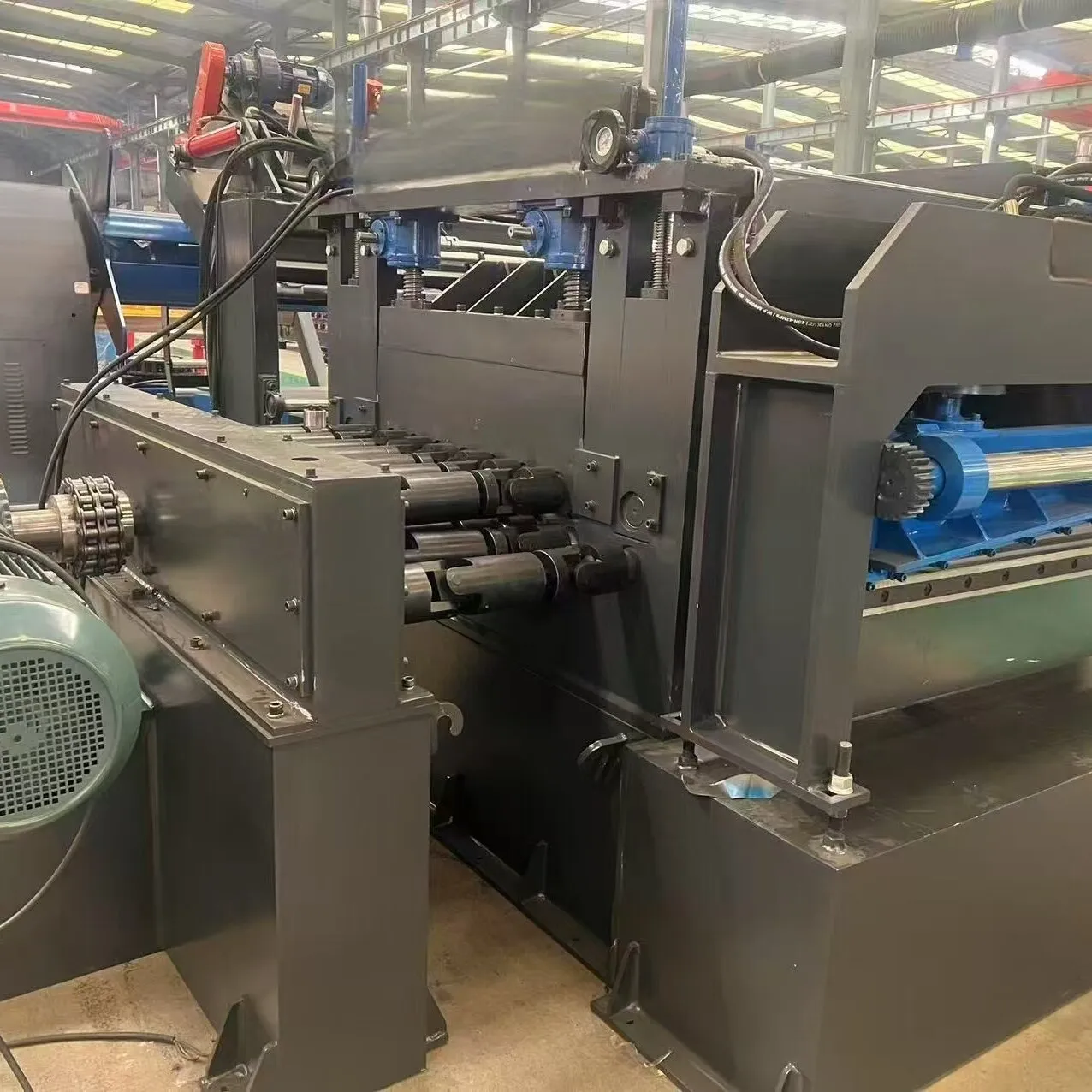

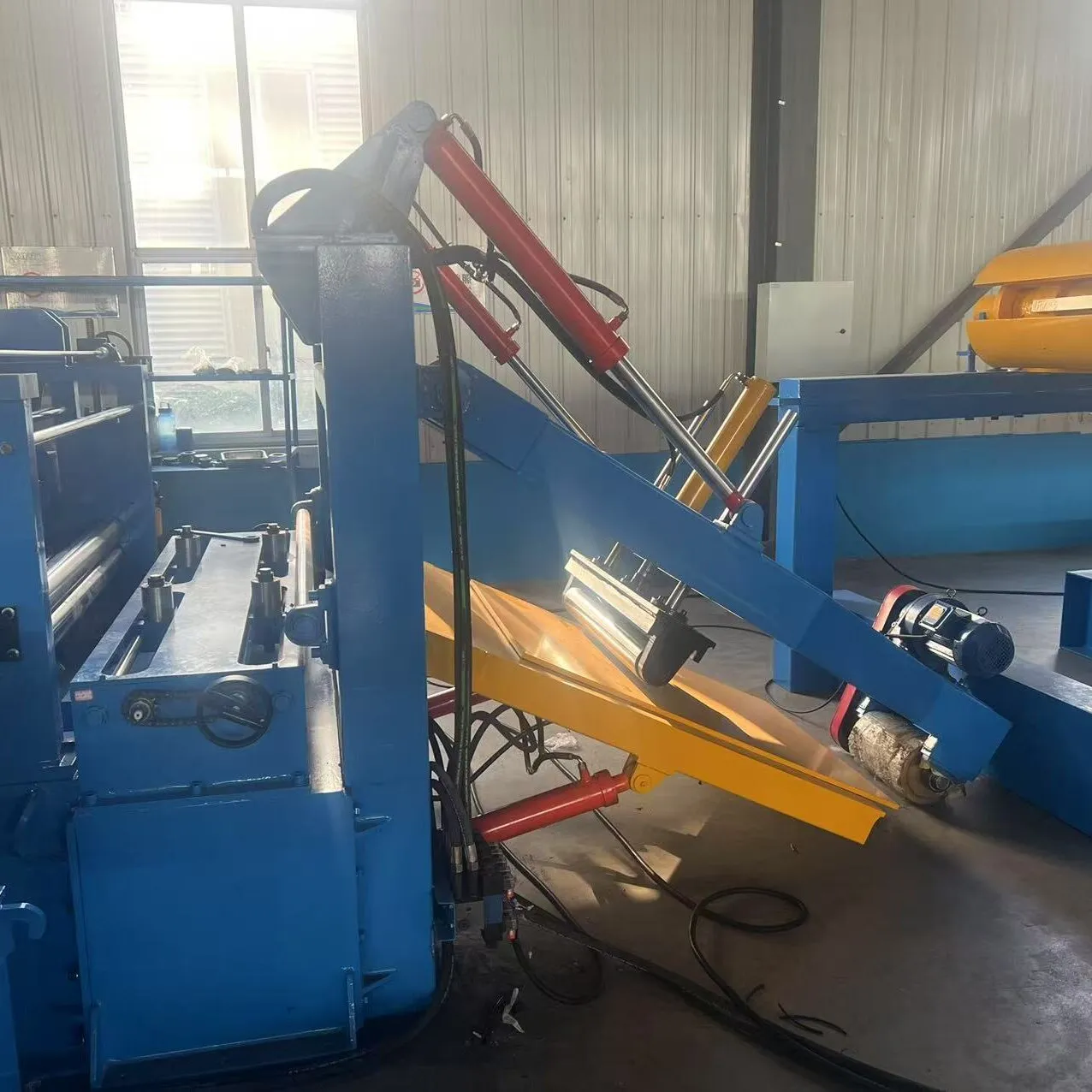

• Steps: coil loading → decoiling → pinch/straighten → quadruple levelers → loop control → length measuring → servo or flying shear → stacking → package.
• Methods: closed-loop servo length control, depth-of-penetration leveling, anti-scratch feed tables.
• Testing standards: flatness vs EN 10131; coil per ASTM A568/A568M; electrical CE machinery safety; QMS per ISO 9001.
• Typical tolerances (real-world may vary): length ±0.5–0.8 mm/m; flatness ≤1.5 mm/m; burr ≤0.1 mm after shear.
• Service life: ≈10–15 years with routine roll polishing, bearing checks, and lube schedules.
• Industries: appliances, HVAC, shelving, elevator panels, automotive blanks, roofing.

Key specifications (practical ranges)

Use cases, advantages, and what customers actually say

Advantages are straightforward: superior flatness, fewer downstream jams, and lower rework. One HVAC buyer told me they shaved 12–15% off setup time because blanks arrived flatter and truer. Another—an elevator panel shop—reported visibly cleaner surfaces after the feed table upgrade. And yes, integration with a Roll Forming Machine downstream is common; fewer waviness issues means nicer profiles.

Vendor snapshot (indicative, for guidance only)

Customization and integration

• Options: servo/flying shear, precision stackers, film applicator, brush tables, auto packaging.
• Data layer: production counters, downtime logs, OPC-UA/Modbus hooks for MES.
• Integration: feeds directly to a Roll Forming Machine or press line; recipe-based setups help quick changeovers.
• Origin: Room 5019, Beichen Square, No.19 Shifang Road, Chang'an District, Shijiazhuang, China.

Quick case note

An appliance plant running 0.7–1.2 mm CR coil swapped to a quadruple leveler. Flatness improved by ≈28% (per EN 10131 checks); trim scrap dropped 1.2%; and—surprisingly—line jams fell below one per shift. Payback? I guess 11–15 months, mostly from rework reduction and faster setups.

Standards and references

1. ISO 9001: Quality management systems — Requirements.
2. EN 10131: Cold rolled uncoated low carbon steel flat products — Tolerances (includes flatness).
3. ASTM A568/A568M: Standard Specification for Steel, Sheet, Carbon, and High-Strength, Low-Alloy.
4. CE Machinery Directive 2006/42/EC and relevant safety standards for industrial machinery.
