Inside the Factory Floor: What to Expect from a Purlin Roll Forming Machine Manufacturer

I’ve toured more than a dozen roll forming lines this year, and—honestly—the gap between “catalog claims” and day-to-day production can be wide. Yowin’s “Quotation For Cz Purlin Roll Forming Machine From Yowin” stood out because the team actually lets you scrutinize test sheets and swap CZ modules on the spot. That’s unusual, in a good way.

Industry snapshot: faster changeovers, smarter controls

The market is drifting toward servo-assisted changeovers, GCr15 roll tooling, and PLC traceability. Many customers say the big headache is downtime when switching C to Z and back again. Yowin’s electric-button changeover and 180° exchange modules aim right at that problem—practical rather than flashy, which is refreshing.

Core specs at a glance

Parameter	Yowin CZ Line (indicative)
Profiles	C 80–300 mm; Z 120–300 mm; waist height 40–80 mm; small edge 10–20 mm
Thickness	t ≈ 1.5–3.0 mm (real-world use may vary by yield strength)
Tooling	GCr15 rolls, heat-treated (≈HRC 58–62)
Stations	18 forming groups; 13 sets of CZ exchange modules (180° switch)
Speed	≈ 12–18 m/min (depends on punching/cutting strategy)
Accuracy	Length tolerance ≈ ±0.75 mm; hole-to-hole ≈ ±0.5 mm

Process flow, materials, and testing (the practical bits)

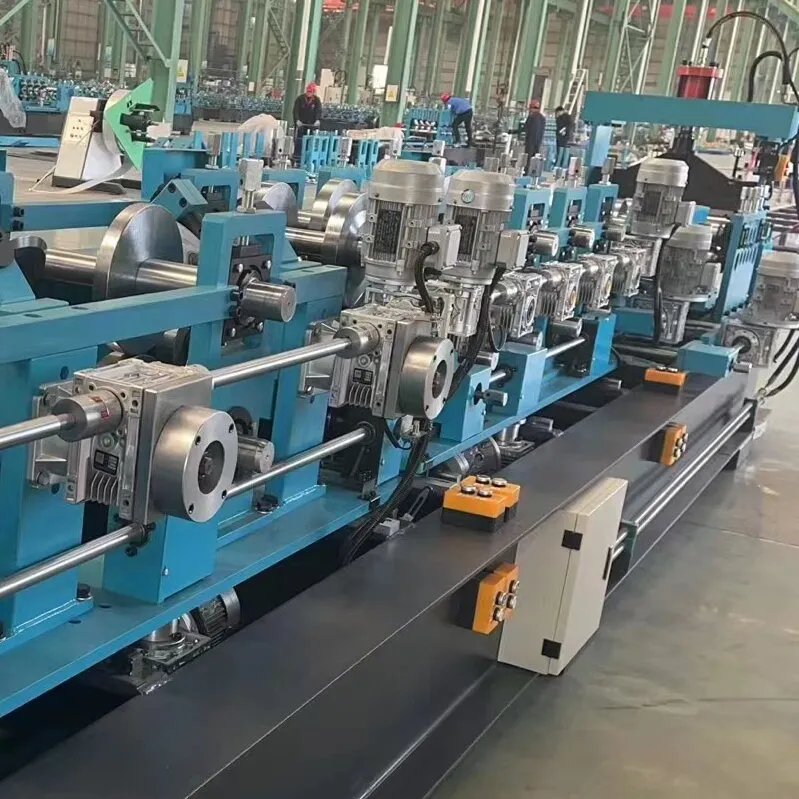

Typical line: decoiler → leveling → servo punching → pre-cut or post-cut → roll forming → straightening → runout. Coils are usually galvanized steel (ASTM A653 or EN 10346), 235–550 MPa yield. The GCr15 tooling conforms closely to GB/T 18254; that’s the bearing-steel standard many serious builders follow.

Test data (sample lot): burr ≤ 0.2 mm; oil stain minimal; noise ≈ 78 dB(A) at 1 m; uptime in trials ~95%.
QC: hardness checks on rolls, laser length checks, hole position Cpk > 1.33 (pilot runs), CE risk assessment per ISO 12100.
Service life: rolls ≈ 6–10 years before regrind; line life 10–15 years with preventive maintenance.

Where these lines earn their keep

Warehouses, logistics centers, farm buildings, carports, and solar mounting frames—if you’re bidding steel structures, speed of changeover is money. In fact, a contractor in the Gulf told me their crew shaved two days off a 12,000 m² roof by switching C→Z mid-shift, no drama.

Purlin Roll Forming Machine Manufacturer case notes:

EU EPC firm: 3.0 mm Z-purlins for solar carports; reported ±0.5 mm hole repeatability, CE documentation ready for audit.
SE Asia fabricator: moved from manual shims to electric-button changeovers; average downtime per spec change fell from 50 min to ≈12 min.

Vendor comparison (short and honest)

Criteria	Yowin	Market Average	Low-Cost Import
C↔Z changeover	Electric button; 13 exchange modules	Semi-manual; ≈30–45 min	Manual shims; ≈45–90 min
Thickness range	1.5–3.0 mm	1.5–2.5 mm	≈1.2–2.0 mm
Tooling material	GCr15, heat-treated	Cr12 or mixed	Unspecified
Support & warranty	CE/ISO docs; on-site commissioning	Remote first	Limited

Customization, compliance, and feedback

Customization: coil car, hydraulic pre-punch, auto stacker, barcode traceability, profile libraries.
Certifications: CE conformity (Machinery Directive), ISO 9001 QMS; material compliance to ASTM A653 / EN 10346.
Customers report: “surprisingly clean edges,” “less rework,” and “operators picked it up in a week.” I guess that’s partly down to the PLC HMI layout—simple pages, not cluttered.

Purlin Roll Forming Machine Manufacturer details, origin: Room 5019, Beichen Square, No.19 Shifang Road, Chang'an District, Shijiazhuang, China. If you visit, ask to see the roll hardness logs and the hole-position Cpk charts—small request, big signal.
