Storage Rack Roll Forming Machine

Saklaýjy rack rulony emele getirýän maşyn

Bedeniň gurluşy: ýadygärlik arkasy

Motory emele getirýän: 18.5kw

Sürüji usuly: Zynjyr

Formanyň geçiş sany: 18 pas

Rolik materialy: Cr12mow, gatylygy söndürmek 58-62 °

Mil materialy: 40Cr, söndürilen we gyzgyn (220-260)

Esasy şahanyň diametri: Φ 80mm

Rulman: Harbin podşipnik

Formanyň tizligi: 0-15m / min (urmak we gyrkmakdan başga)

Önümçilik liniýasynyň tizligi: takmynan 0-8m / min (dizaýna görä)





pdf-a göçürip al
Önümiň beýany


Read More About metal storage rack upright pillar roll forming machine

Suratlar

Read More About high speed galvanized storage beam roll forming machine



Amallar we komponentler

De-coiler with leveling machine x 1 toplum
Punch maşyn bilen servo iýmitlendiriş ulgamy x 1 toplum
Iýmitlendiriş ulgamy x 3 toplum
Quick change roll forming machine    x 1 toplum
Hydraulic cutting with servo track    x 1 toplum
Gidrawlik stansiýasy x 1 toplum
PLC dolandyryş ulgamy x 1 toplum
Tamamlanan tablisa (3M * 2)   x 1 toplum



Iş prosesi

Read More About metal storage rack upright pillar roll forming machine



Tehniki parametrler





Read More About storage rack roll forming machine

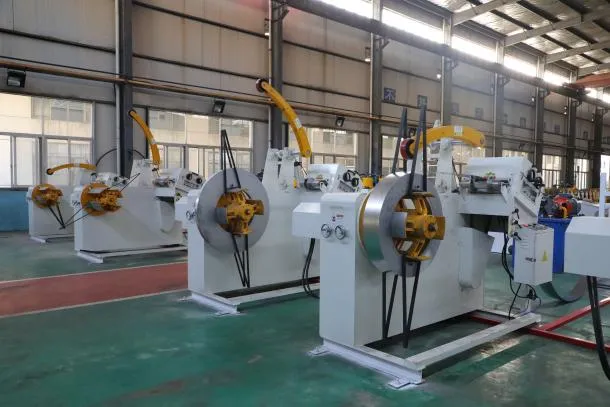

Decoiler with the leveling

  1. Uncoiler: Işjeň iýmitlenmek, gidrawliki dartyş
  2. Göwrümi: 3T
  3. Inner diameter of uncoiler support coil: φ 508mm
  4. Support range: φ 470-530mm
  5. Steel coil width: ≤ 300mm
  6. Polat rulonyň daşky diametri: 1300mm
  7. Gidrawlik ulgamyň güýji: 1.5KW
  8. Motor güýji: 3kw
  9. Düzeltmek mehanizminiň gurluşy: iki rolik çümmük, ýedi rolik tekizlemek
  10. Leveling roller shaft diameter: approximately φ 52.5mm
  11. Düzelýän rolik materialy: ýokary hilli 40Cr
  12. Miliň ýylylygy bejermek usuly: ýokary ýygylykly söndüriş bejergisi

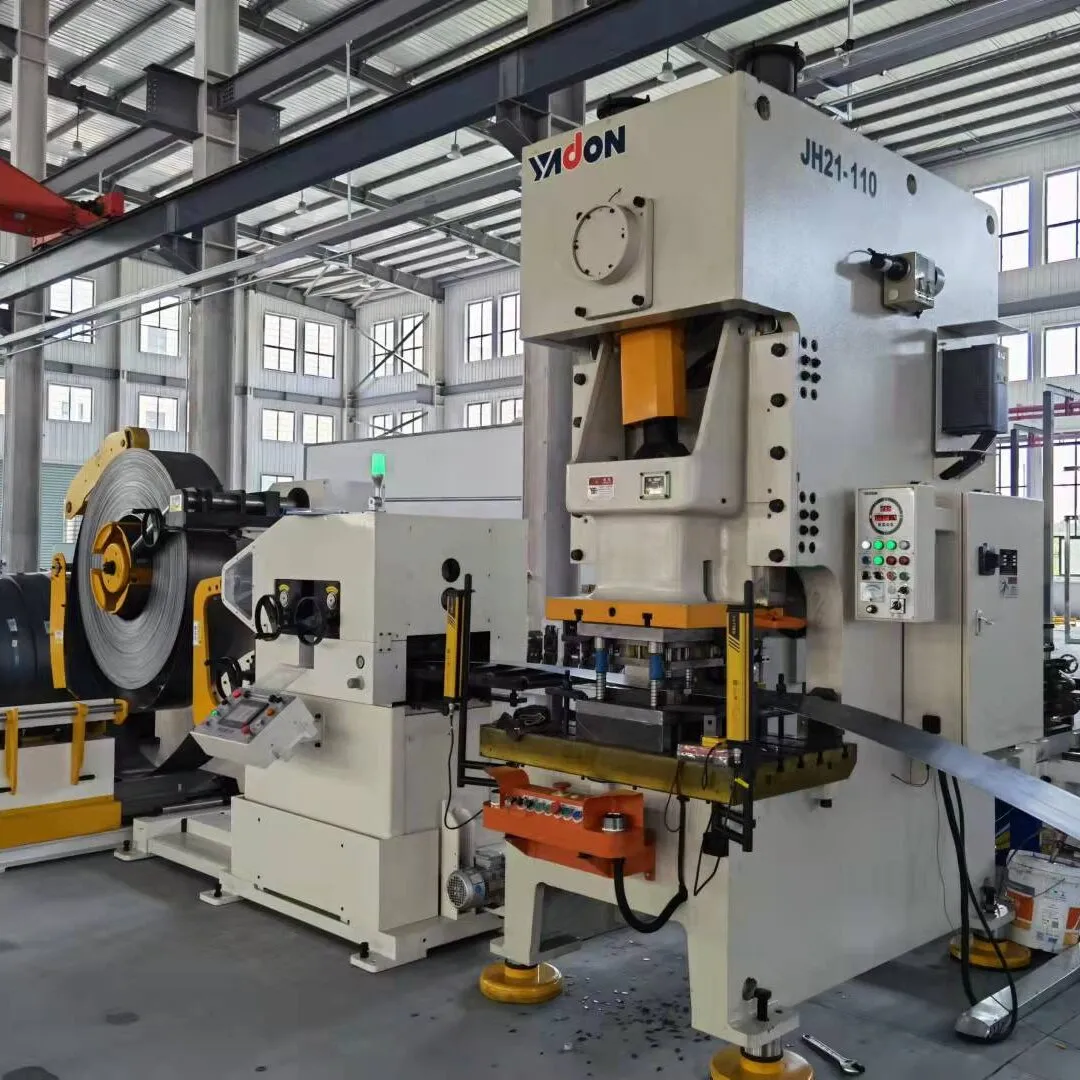

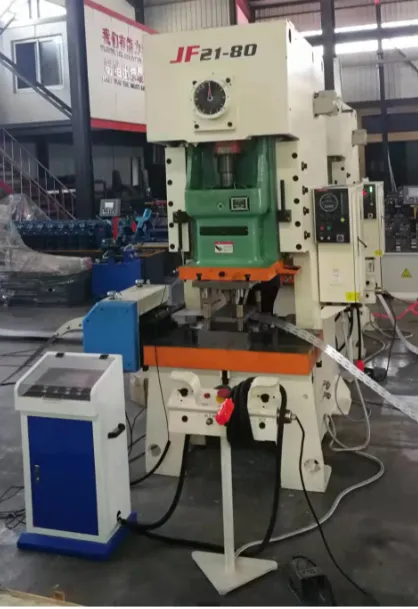

Punch maşyn bilen servo iýmitlendiriş ulgamy

  1. Servo iýmitlendirmek: Servo motor bilen sürülýär, urýan maşyna iýmitlenýär
  2. Servo iýmitlendiriji modeli: NCF-300
  3. Polat rulonyň ini: iň ýokary 500mm
  4. Iýmitlendiriş güýji: 5.5kw (kaaskawa)
  5. Ponç tonnasy: JH21-80
  6. Süýşüriji urgy: 160
  7. Syýahat sany: 35-50 gezek / min
  8. Motor güýji: 15kw (Siemens)
  9. Ölüm materialy: Cr12mow, gatylygy söndürmek HRC58-62
  10. Galyplaryň sany: 5 toplum



 Read More About storage rack roll forming machine
Read More About storage rack roll forming machine long warranty

Iýmitlendiriş ulgamy

Operatoryň giriş tagtasynyň ugruny dogry sazlamaga kömek etmek üçin öý eýesiniň başynda düzüldi. Çep we sag tarapy el tigirleri bilen sazlap bilersiňiz we iýmitiň sany görkezilýär.

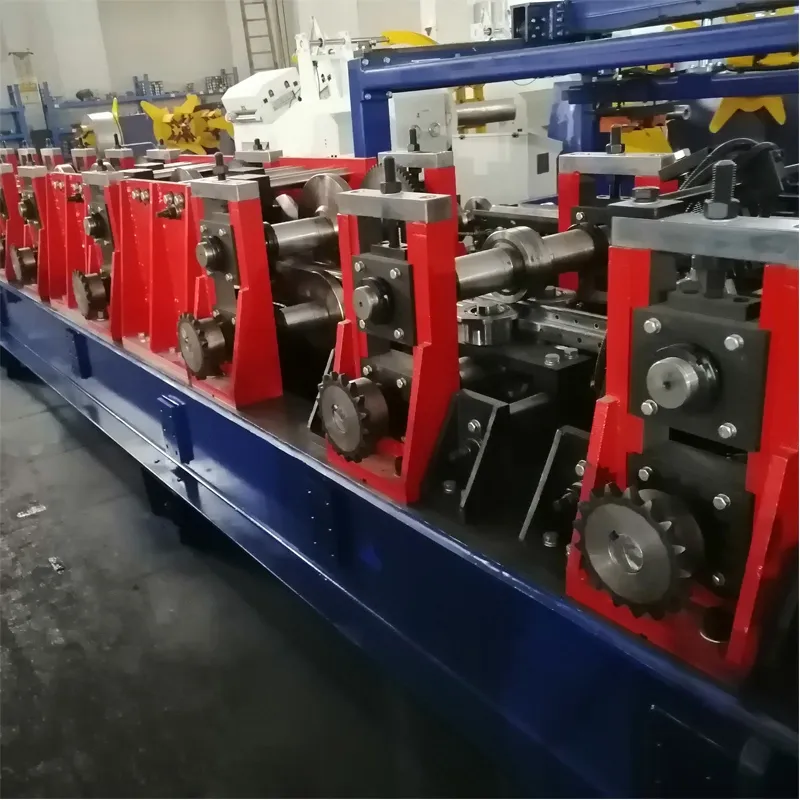

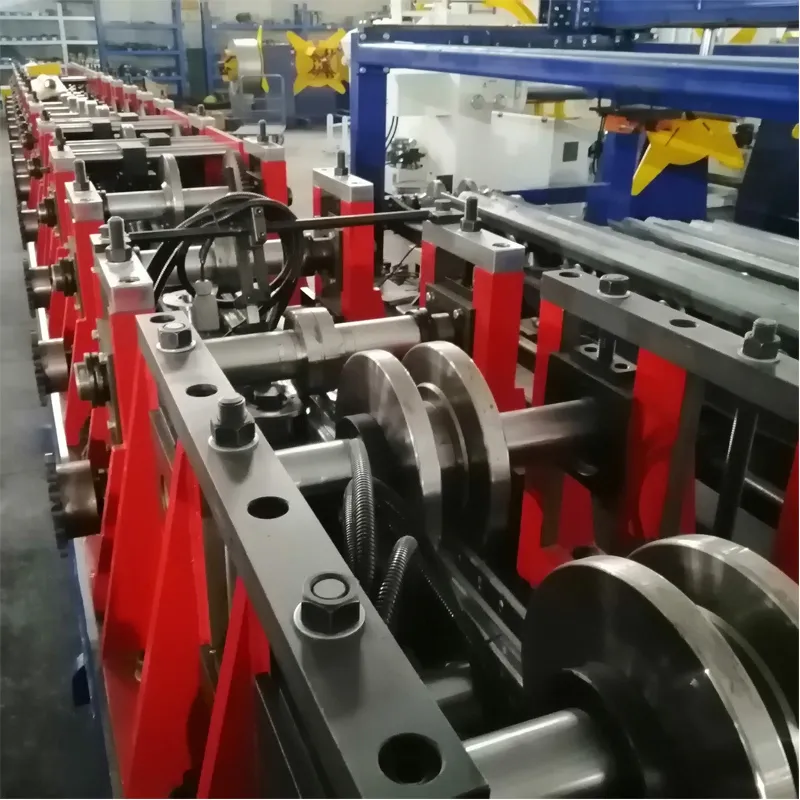

  1. Esasy rulon emele getiriji maşyn
  2. Bedeniň gurluşy: ýadygärlik arkasy
  3. Motory emele getirýän: 18.5kw
  4. Sürüji usuly: Zynjyr
  5. Formanyň geçiş sany: 18 pas
  6. Roller material: Cr12mov, quenching hardness 58-62 °
  7. Mil materialy: 40Cr, söndürilen we gyzgyn (220-260)
  8. Main shaft diameter: Φ 80mm
  9. Rulman: Harbin podşipnik
  10. Formanyň tizligi: 0-15m / min (urmak we gyrkmakdan başga)
  11. Önümçilik liniýasynyň tizligi: takmynan 0-8m / min (dizaýna görä)
  12.
 Read More About metal storage rack upright pillar roll forming machine
Read More About storage rack roll forming machine long warranty

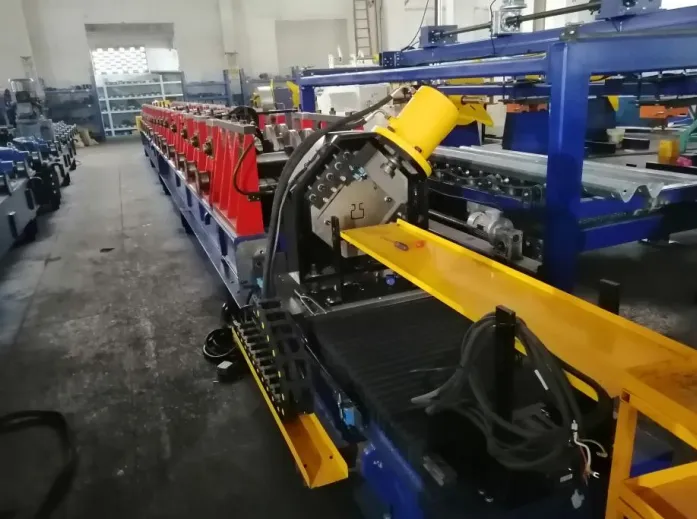

  1. Gidrawlik kesiş sero ýoly
  2. Iş tertibi: serwony yzarlamak, gidrawliki kesmek
  3. Urmak we kesmek galyplarynyň sany: 5 jübüt, dürli spesifikasiýa pyçaklary çalşyldy
  4. Galyndy materialy: Cr12mow
  5. Gidrawlik güýji: 11kw (Günorta Hytaý)
  6. Servo motor güýji: 5.5kw

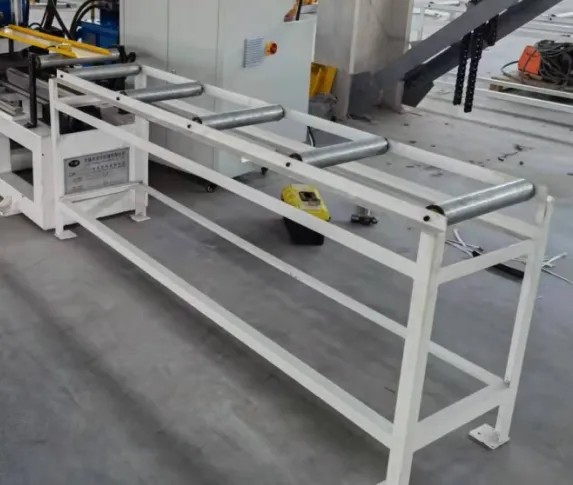

Tablisa

2000mm * 2 pleönekeý we güýçsiz (burç polat kebşirlemek, deprek saklaýjy)

 Read More About storage rack roll forming machine long warranty
Read More About high speed galvanized storage beam roll forming machine

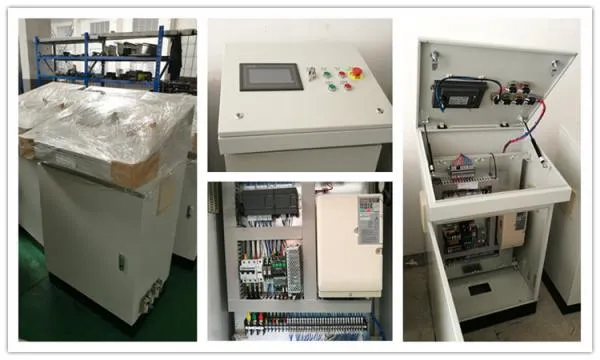

PLC dolandyryş ulgamy

1.Inverter: Ançuan (Japanaponiýa)

2.PLC: Siemens

3.Kompýuteriň iş paneli: MCGS

4.Koder: Omron / Optiki umman

5. Wolt; 380V, 50Hz, 3PH (müşderiniň talaplaryna görä bolup biler)

high speed galvanized storage beam roll forming machine

metal storage rack upright pillar roll forming machine

storage rack roll forming machine

storage rack roll forming machine for sale

storage rack roll forming machine long warranty

Habar iber

Önümlerimiz bilen gyzyklanýan bolsaňyz, maglumatlaryňyzy şu ýerde goýup bilersiňiz, ýakyn wagtda siziň bilen habarlaşarys.

  • *
  • *
  • *
  • *

Haryt maslahaty
OWOWIN hakda iň soňky habarlar
